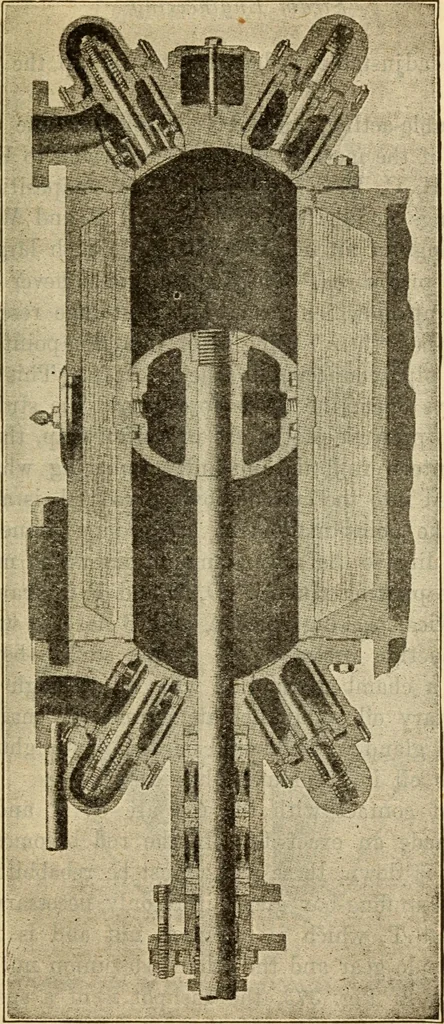

newstroke^ gas is immediately drawn into the cylinder. In the horizontal machine^ the valves are like thoseused in the consolidated compressors^ the stems and discsbeing of forged steel set in cast-steel housings. Liftof the valves is given by cushion springs and controlledby compression springs… … Fig. 371section of compressor showing water jacket 888 Steam Engineering vided with adjustable wedges for taking up the wear ofthe boxes. In a double-acting, ammonia compressor, the stuffing-box is one of the most vital parts. Eeferring to Fig. 372,letters A, B, C, D, E and F indicate composition…
