A textbook on the locomotive and the air brake (1901)
International Correspondence Schools · Scranton, Pa., International textbook co · leaf 188

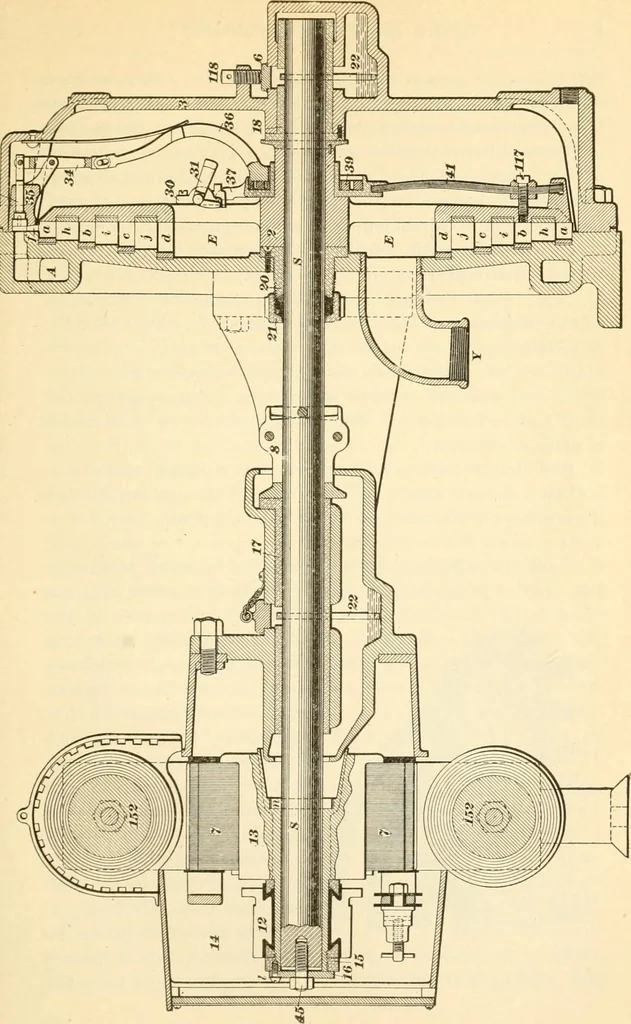

urbinewheel on the right, marked 2, is fastened solidly to the mainshaft S and contains four sets of buckets. The outer set a is atits extreme outer diameter, while the three remaining sets ofbuckets, marked 5, c, and d, respectively, also in circular form,are inside the outer row. Each row of… … THE ELECTRIC HEADLIGHT. 14 entering at A passes through two ports / in the governorstand So, strikes the face of the first row a of buckets, and asthe wheel moves forward, it allows the steam to exhaust or passout through the bottomless buckets into a series of stationaryexhaust passages h, the…
Locomotives · Locomotive boilers · Railroad cars
Internet Archive · Northeastern University Library · Public Domain Mark 1.0. Free to use for anything.
