Twentieth century handbook for steam engineers and electricians, with questions and answers; a practical nontechnical treatise on the care and management of steam engines, boilers and electric machinery (1922)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & company · leaf 920

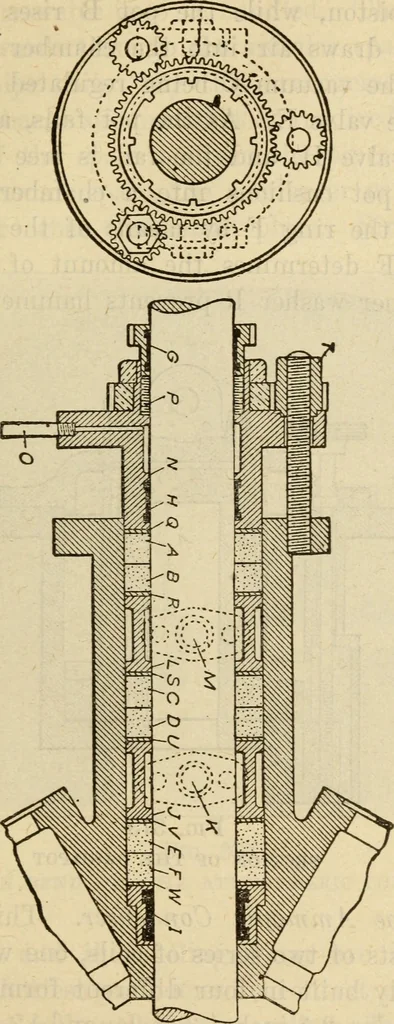

act with the rod are G, H and I andthey are made an exact fit. If the rod becomes scoredand is turned down, these parts must be rebabbitted. Totighten the stuffing-box gland it is only necessary to ad-just the nut T, w^hich is a pinion nut and is in meshwith the inside gear and the other two pinion… … Fig. 372stuffing-box of the double-acting compressor and connected by the usnai vertical link rod to the crankon the valve stem. The central cylinder A acts as a 890 Steam Engineering guide and piston^ while the pot B rises and falls^ andby so doing draws air into tlie chamber C through thepassage…
