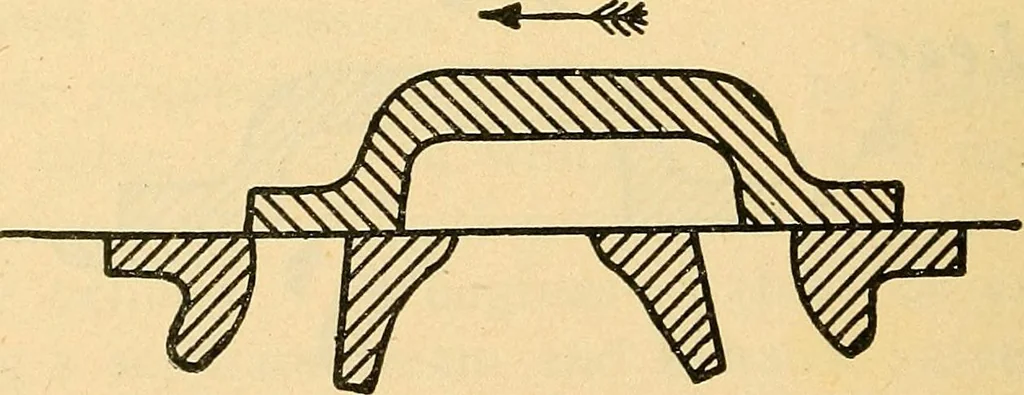

on the dead center, the first function of the valve islead or admission, illustrated by Fig. 14. Owing tothe valve having both lap and lead, the position of thehighest point of the eccentric will be assumed in thiscase to be 1200 ahead of the crank, the position of thelatter being at o°. Exhaust… … FIGURE 16. end of the cylinder. The second function is full portopening, Fig. 15, the crank having moved through 60 °and the eccentric is now at 1800, the farthest point ofits throw in that direction, the valve being at the endof its travel. At this point it might be well to note a VALVES AND VALVE…
