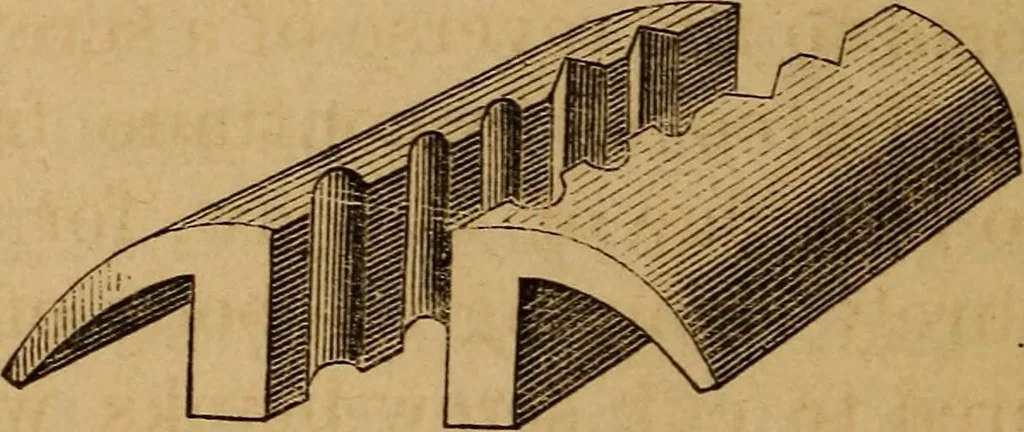

Fig. 6. holding the same without bruising it. Let himhave some false jaws cast of brass, or even of cast- VISE FIXTURES AND ATTACHMENTS. 31 iron, similar to Fig. 6, in which he can easily filea series of triangular or half round grooves, in anydirection, in each piece, as shown in the cut, so asto…
