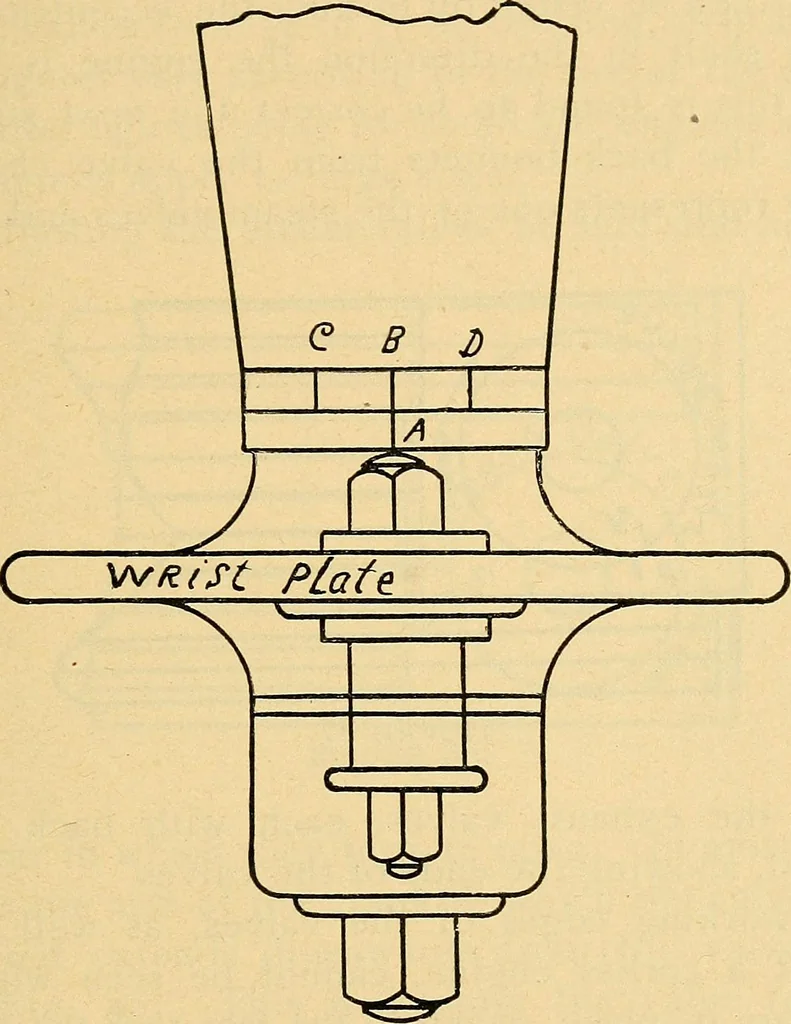

ate that the wrist plate is central. Marks C and Dare on the stationary flange at equal distances eachway from B, and when the engine is running mark Ashould travel to the right until it is in line with D and VALVES AND VALVE SETTING 161 to the left until in line with C, or it may happen thatA will… … FIGURE 36. change is made in the lengths of the eccentric rod orhook rod after the valves are once set it will seriouslyaffect the action of all the valves. The method of adjusting the rocker arm so that itwill vibrate correctly has been already described andit is very desirable that its travel…
