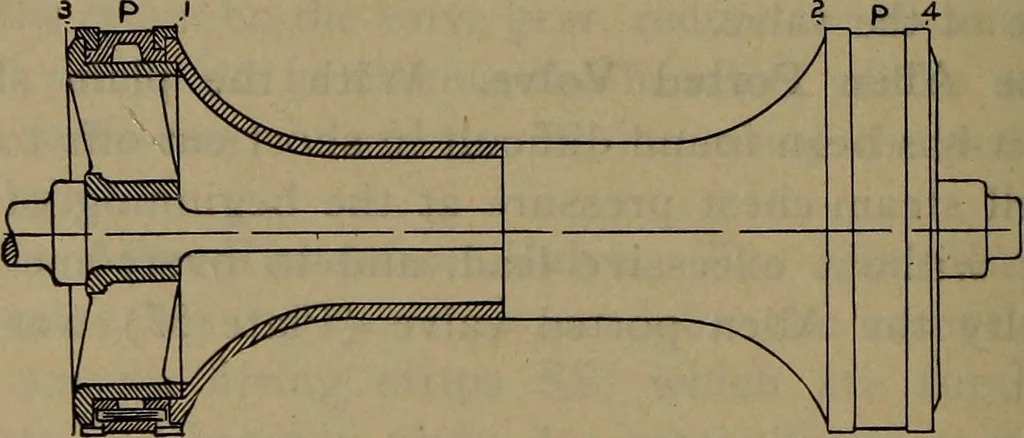

m at a highinitial cylinder pressure with short valve travel, and it isespecially adapted to high speed engines working inshort cut-offs. This valve is of the D type. PISTON VALVE. The piston valve derives its name from its con-struction. It consists of two pistons PP, connected bya stem which is… … PLATE 58. Plate 59 shows the piston valve in the bushing, andcylinder.v Plate 60 shows a section through the saddle and cyl-inder. V represents the piston valve, C the cylinder, Ethe exhaust and S the steam passage. Plate 61 shows the piston valve bushing. The longi-tudinal strips or bridges are…
