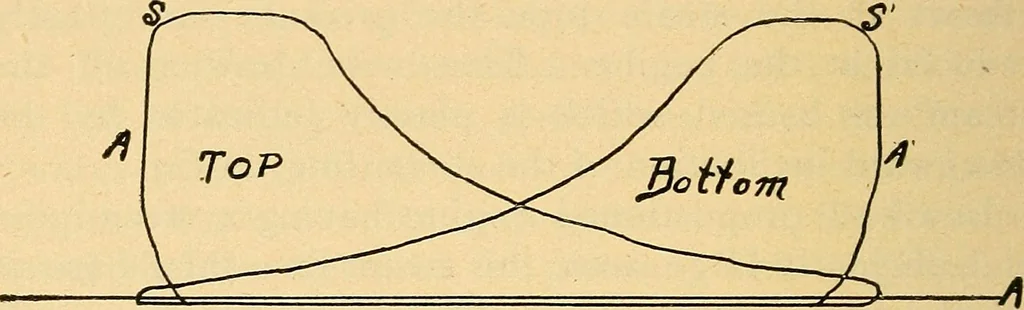

he beneficialresults of condensing were only partially realized. For convenience the diagrams from each engine willbe treated in numerical order, beginning with engineNo. I. This engine was 24 x 48 in., running 70 R. P.M., with a boiler pressure of 68 lbs. A 40 spring was 210 ENGINEERING used in… … FIGURE 52. the stroke. (See Fig. 52.) There was also more com-pression, especially on the bottom end, than was neces-sary, considering the size of the engine and the speed.The necessary changes having been made, the indi-cator was again applied and the diagram Fig. 53 was
