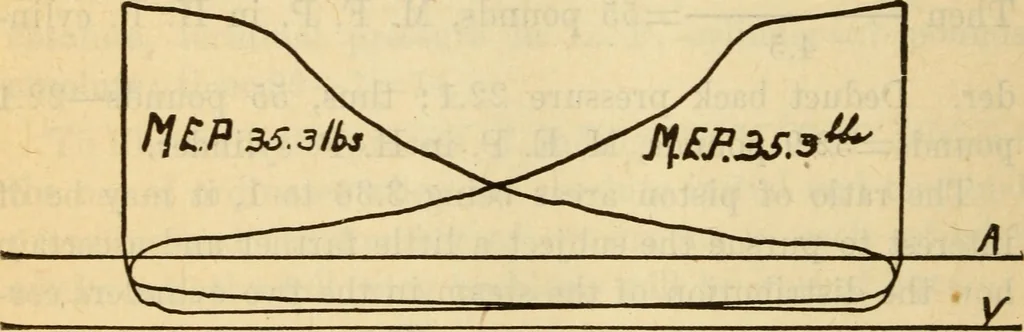

L. P.cylinder was 266.4, showing a difference of only three horsepower in the amount of work done in each cylinder. Fig. 198 was taken from one of a pair of Fishkill Cor-liss engines connected to a common crank shaft. The en-gines were each 24x48 inches, and run at 65 E. P. M., witha boiler… … Fig. 198 called upon to indicate them and adjust the valves. Adiagram taken at the same time from the mate of this en-gine was very nearly an exact counterpart of Fig. 198.The horse power, as shown by Fig. 198, was 248, and thesteam per I. H. P. per hour was 15.2 pounds. The vacuumgauge showed 27…
