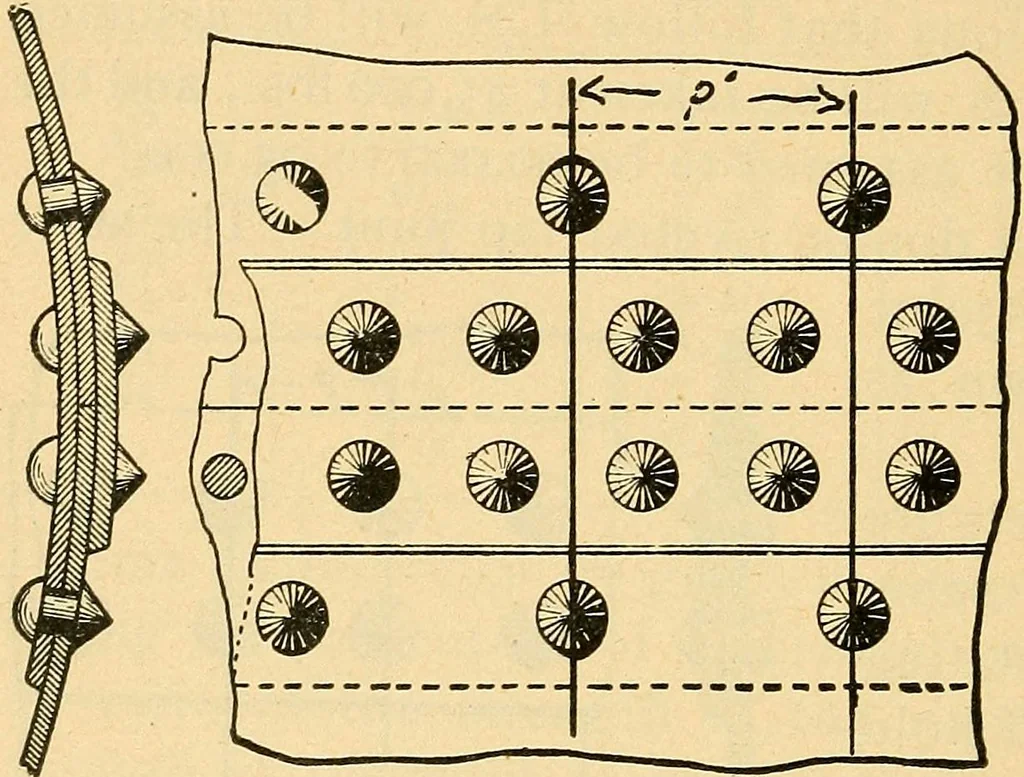

net strength at this point is P-DxTxT.S.,which, expressed in plain figures, results as follows:5.5- 1 x .4375 x 60,000= 118,125. 2. Shearing two rivets in double shear and one in .single shear. Should this occur, the two rivets in theinner row would be sheared on both sides of the plate,thus being… … FIGURE 98. THE BOILER 307 The total resistance, therefore, is 5A x S as follows:.7854 x 5 x 45,000 = 176,715. 3. The plate may tear at the inner row of rivets andshear one rivet in the outer row. The resistance inthis case would be P — 2D x T x T.S. + A x S asfollows: 5.5 -2 x .4375 x 60,000 +…
