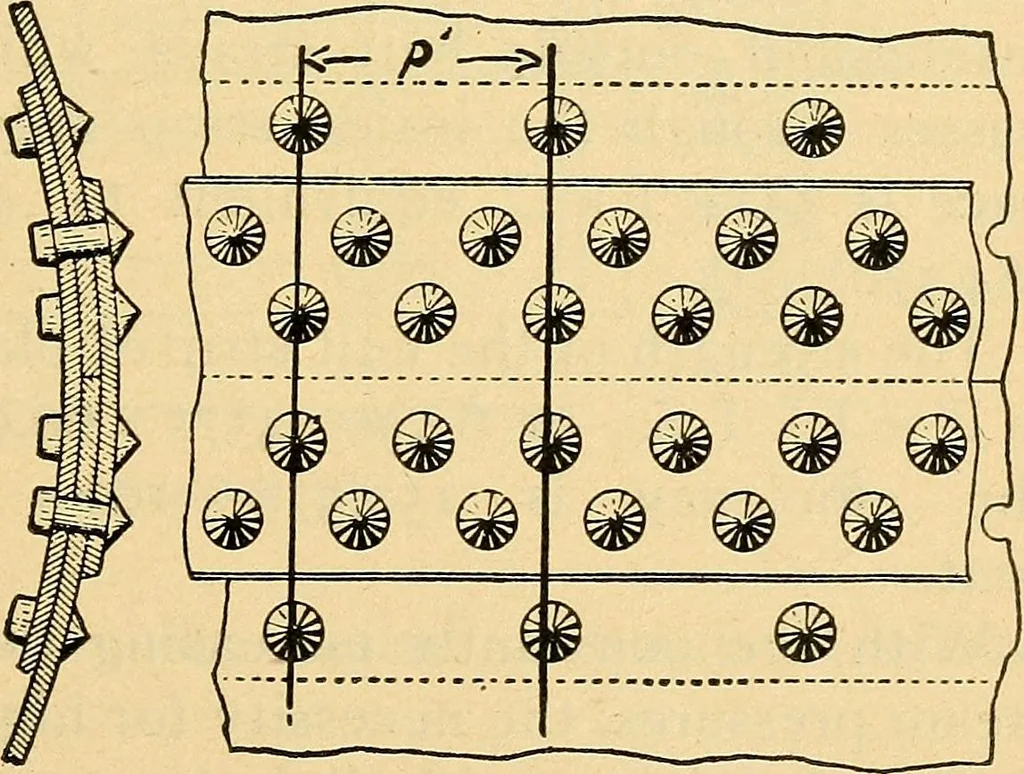

68. The strength of a solid strip of plate 5^ in. widebefore drilling is P x T x T.S., or 5.5 x .4375 x 60,000 =144,375, and tne efficiency of the joint is 118,125 x 100 ■*■144,375 = 81.1 per cent. A triple-riveted butt joint is shown in Fig. 99, thedimensions ofwhich are as fol-lows: T~*.in. D =… … FIGURE 99. 308 ENGINEERING strip at this point isP-DxTx T.S., found as follows:675 - -9375 x -4375 x 60,000 = 152,578. 2. By shearing four rivets in double shear and onein single shear. In this instance, of the four rivets indouble shear, each one presents two sections, andthe one in single shear…
