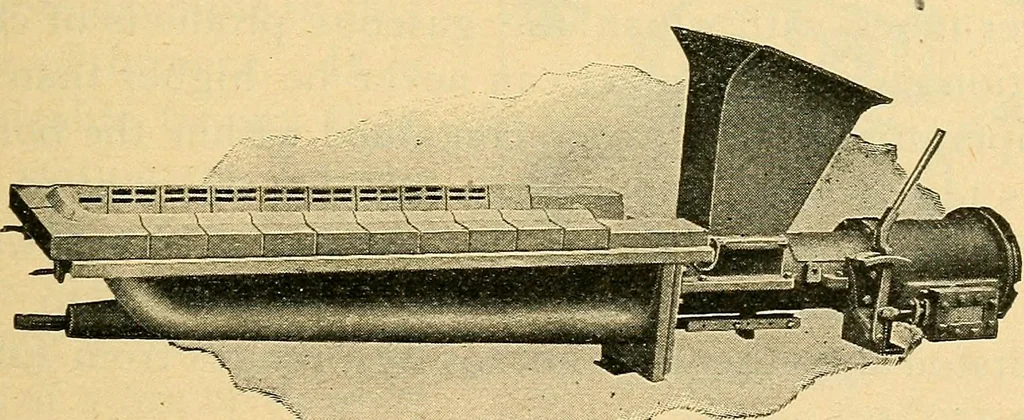

FIGURE 123. ram carries forward 15 to 20 lbs. of coal. Connectedto the ram and moving in conjunction with it is a longrod extending through the retort near the bottom.Upon this rod are carried shoes that act as auxiliaryplungers and facilitate the movement of the coal. … FIGURE 124. Fig. 123 is a sectional view of the Jones stoker,showing the machine full of coal, with the ram readyto make a charge. Fig. 124 shows the stoker completebefore being placed in the furnace. 352 ENGINEERING It is claimed by the builders of under-feed stokers,and the claim appears to have…
