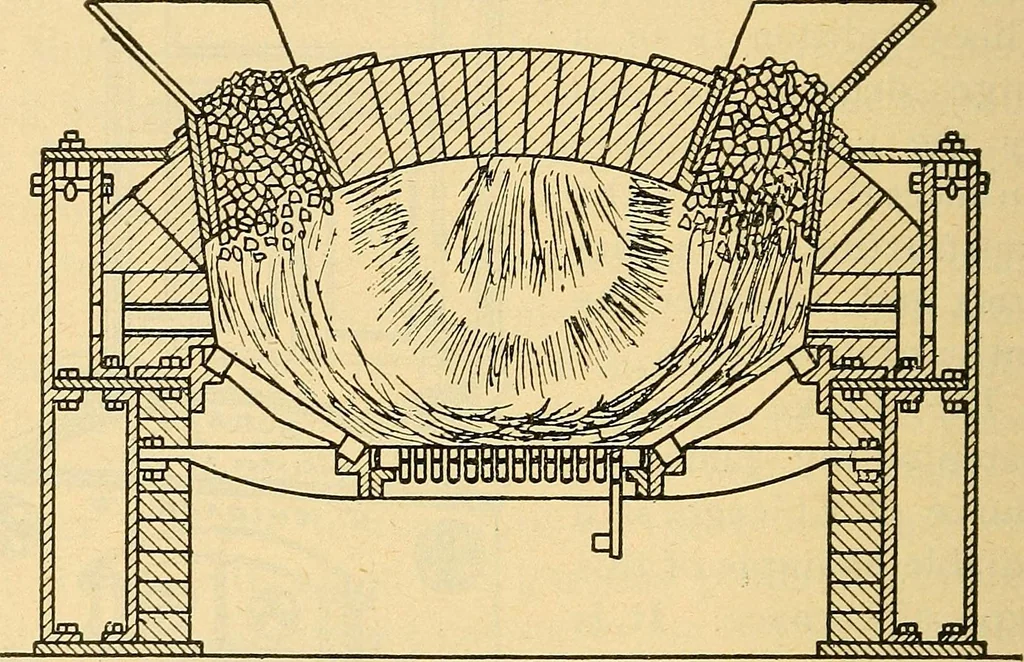

Front View. FIGURE 125. 354 ENGINEERING by it passing to the boiler. The central portion of thegrate bars consists of shaking grates, while the sidebars are stationary and inclined. Fig. 126 is a sectional view and will serve to illustratethe construction of this furnace. The coal is fedthrough… … C/foss Seer;0//.FIGURE 126. opened for the purpose of cleaning fires or when firststarting fires. The air is supplied by way of the ashpit, passing up through the grate bars. A portion ofthe air supply is also drawn through the ventilators andpasses to the upper part of the furnace. The archextends…
