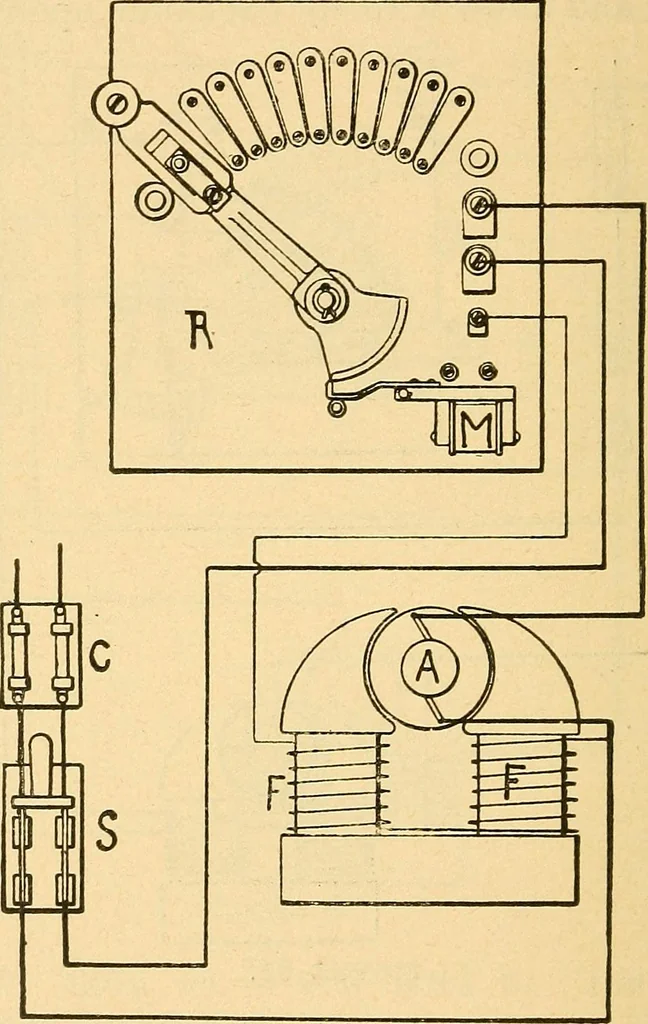

the series winding ofthe fields is arranged to act in opposition to that of theshunt winding. In such a case an increase in the loadof a motor will weaken the fields and allow more cur-rent to flow through the armature without decreasing 114 ELECTRICITY FOR ENGINEERS the speed of the armature, as… … FIGURE 66. direction as that of the shunt fields, the motor willslow up some when a heavy load comes on, but willtake care of the load without much trouble. Fig. 66shows a starting box arranged as a speed controller.It differs from other starting boxes only in so far thatthe resistance wire is much…
