Twentieth century hand-book for steam engineers and electricians, with questions and answers .. (1905)
Swingle, C. F. [from old catalog], Horstmann, Henry Charles, 1858- [from old catalog], Tousley, Victor Hugo, 1875- [from old catalog] · Chicago, F. J. Drake & co. · leaf 567

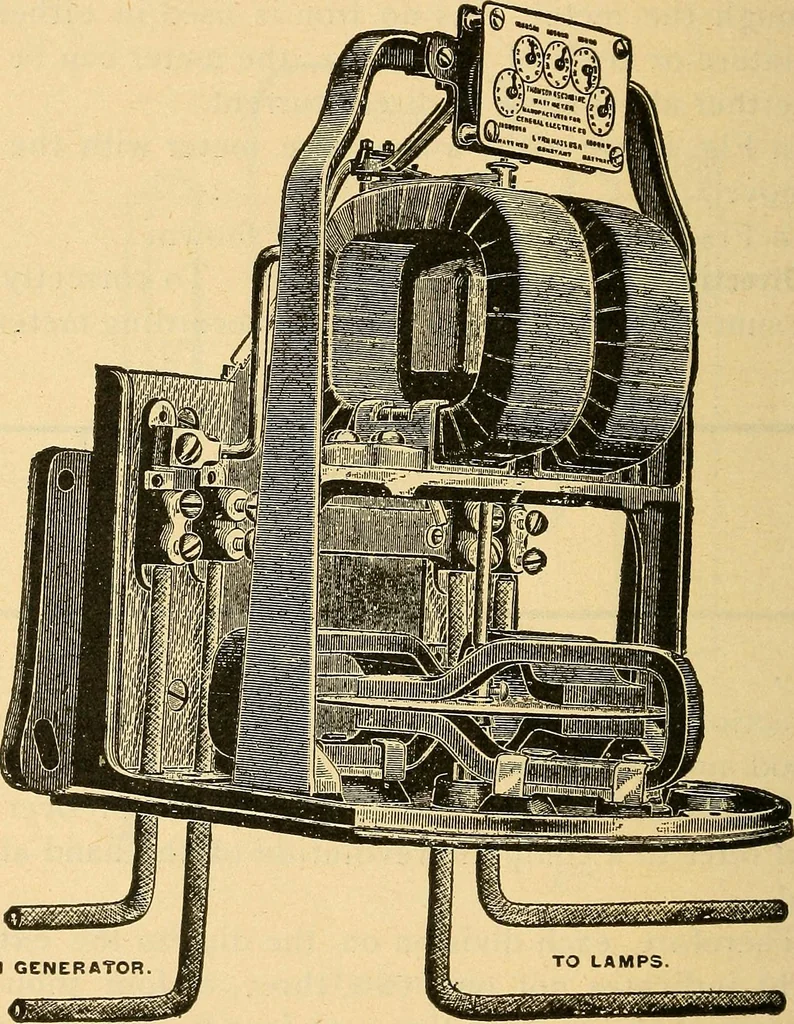

, two, three, or four hundreds of units. A complete revolution of the hand counts one thou-sand, and will have moved the hand on the second dialone division. Thus in reading Diagram No. 6, Fig,87 the first dial (that on the extreme right) indicates700, not 7,000. 148 ELECTRICITY FOR ENGINEERS A… … FROM GENERATOR FIGURE 85. or passed o, or, in other words completed a revolution.For this reason it will be found easier and quicker toread a dial from right to left, as shown by reading Dia-gram No. 2, Fig. Sy. ELECTRICITY FOR ENGINEERS 149 The first dial (the extreme right) indicates 900.…
