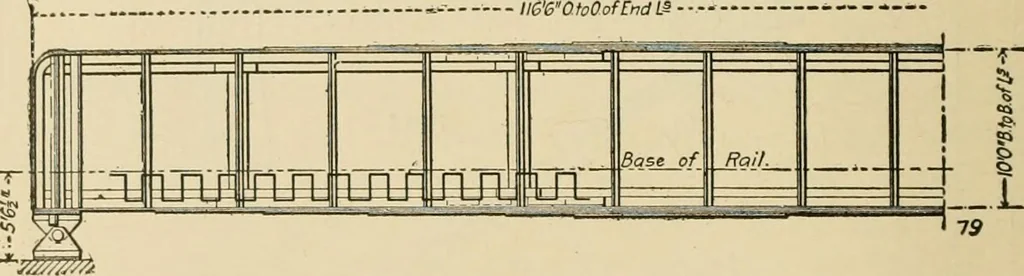

s are all i in. thick and 73 ft. 2 in., 87 ft. 6in., and 101 ft. 2 in. in length successively, and are placed afoot or two nearer the obtuse than the acute end of the girder.Special provision is made for stiffening the wide horizontalplates of the top flange, which overhang the flange anglesseveral… … Inside Semi-Elevation. — Maiden Lane Bridge. against the under side of the flange plate, with filler platesunder the projection of the flange plates beyond the flangeangles. On the outside, these bearing angles are riveted alsoto a short vertical web gusset plate, and on the inside to thetop of the…
