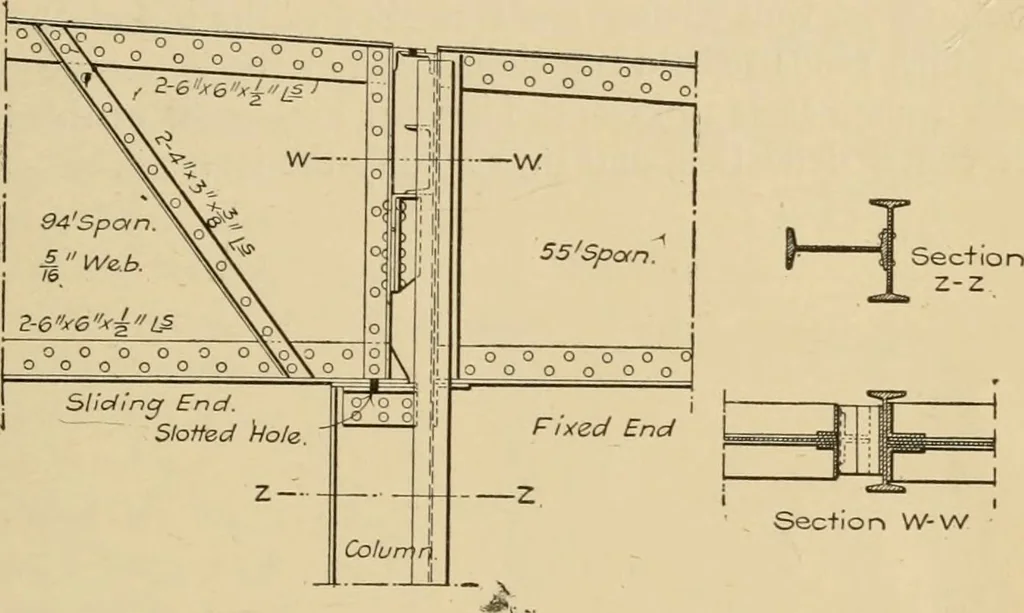

e samecap plates, and still keep the top flanges of both spans at thesame level. The arrangement is shown in the accompanying cut.The short girders have no sole plates, but the long ones have soleplates beveled at one end to concentrate the bearing on a dis-tance of 7 in. next the end of the girder… … 2-6<-ey-s LS 0000o o O Q Supports o-T Girders.Consolidated Traction Companys Bridge, Newark. Traction Covipany s Crossing. — The double-track overheadcrossing of the Consolidated Traction Companys electric linesabove the main tracks of the Delaware, Lackawanna & WesternRailroad, between…
