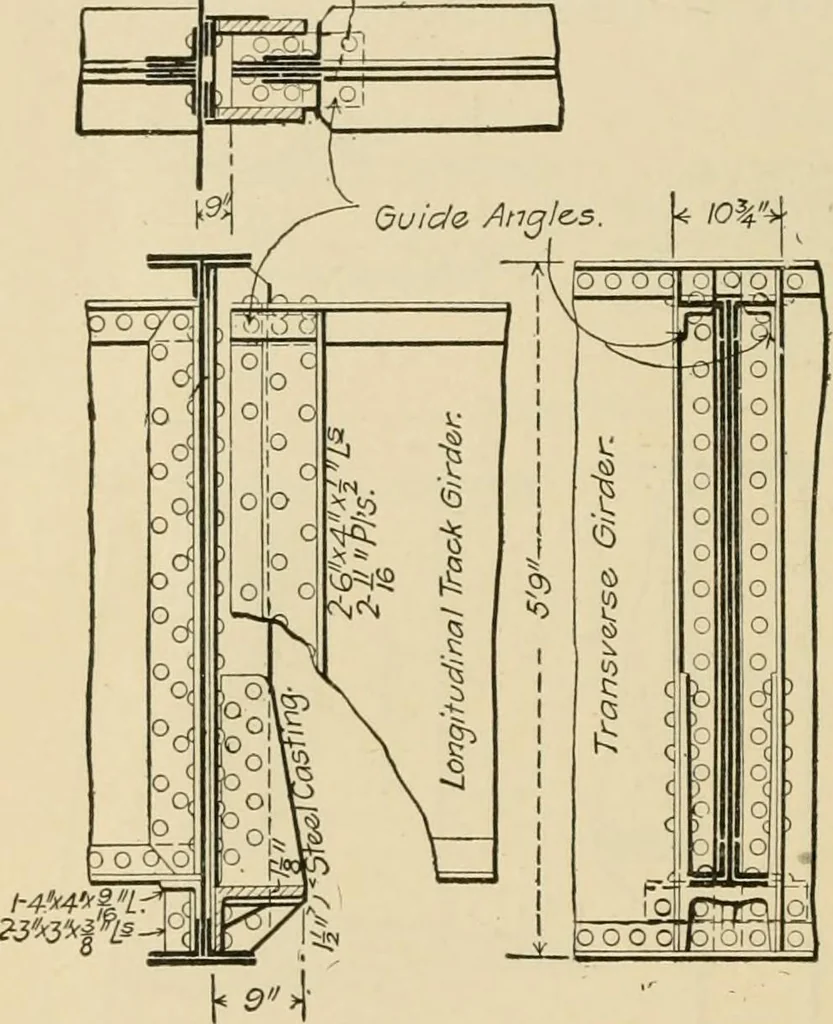

romboth ends to a maximum width of nearly 2 ft., near the lower end. At this point thegussets are connected bya pair of horizontal 15-in. channels, back toback, with a pair of i-in. bearing plates coun-tersunk-riveted to theweb of the upper chan-nel. The end of thegirder is seated on thisplate… … the sliding girder flange. Williamsburg Bridge Elevated R. R. Girders. This connection is virtu-ally made both to theweb of the double-web transverse girder and to the top of thebattered column which it intersects on the center line. Williamsburg. — The 40-ft. longitudinal girders of the…
