Skinner, Frank W. (Frank Woodward), 1858-1932 · New York, McGraw · leaf 220

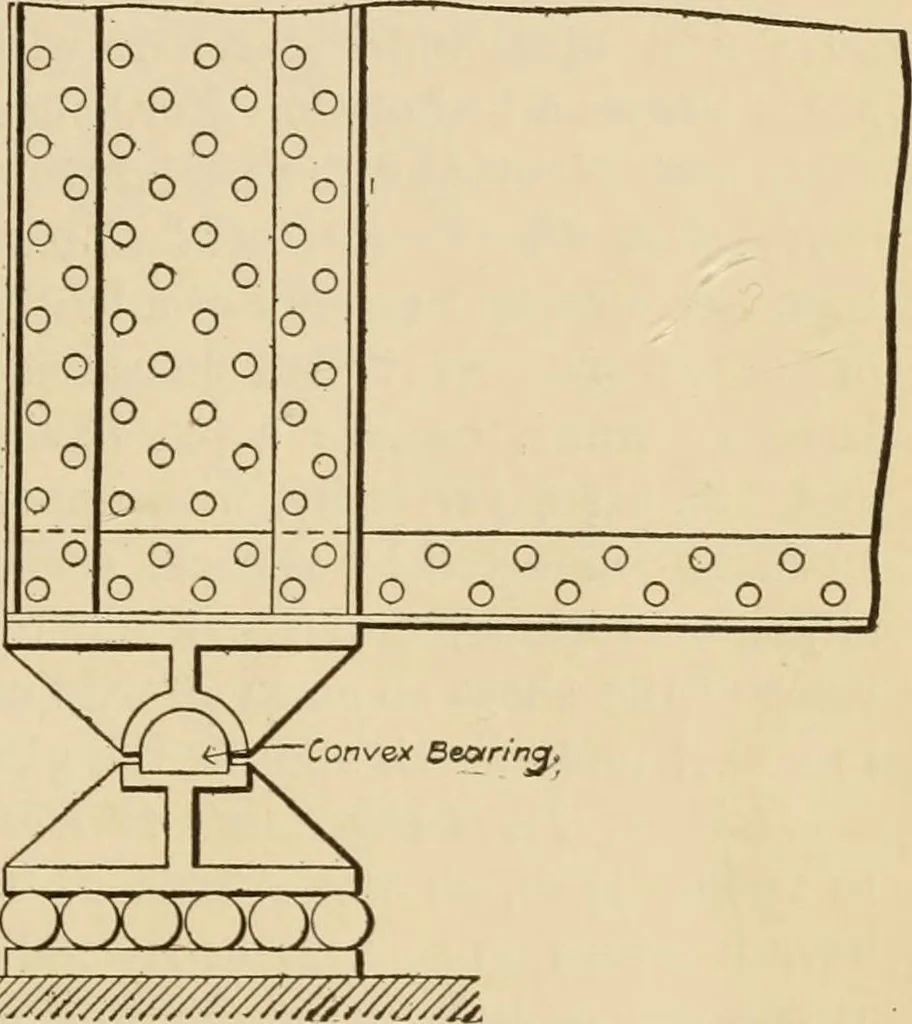

he shoe bearings and lock them firmly in position.They have both longitudinal and transverse webs, and at the ex-pansion ends are seated on nests of cylindrical rollers and anchoredby cast steel clamps with Z-shape vertical transverse sections. Canadian Pacific Railroad Standard. — Long-span… … Vernon Avenue Highway Bridge. 204 BRIDGE CONSTRUCTION tion of the loads on the bed plates. A thick sole plate rivetedto the bottom flange is bored to receive the convex sphericalupper surface of a cast steel disk 15 in. or more in diameter and2\ in. or more in thickness. The flat under side of the…
Bridges
