Skinner, Frank W. (Frank Woodward), 1858-1932 · New York, McGraw · leaf 228

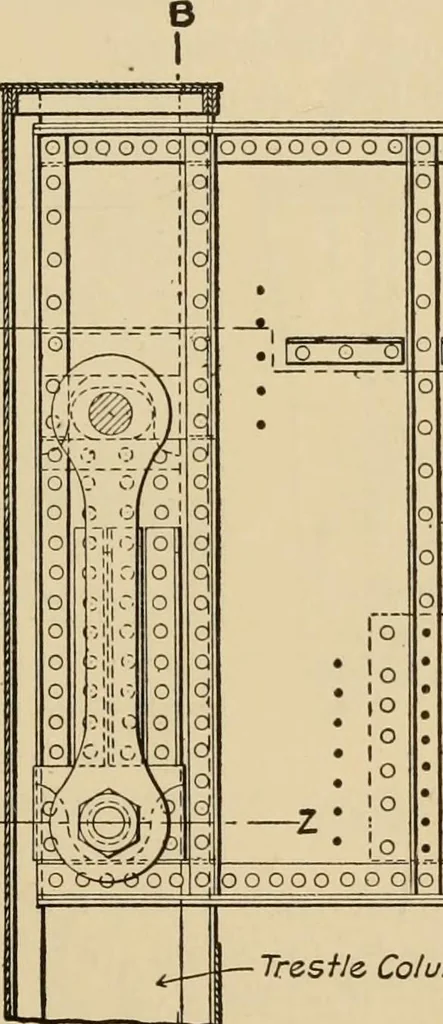

^Column. Cast-5feelBearing. X 5Pin.. -NoBearinofin Girder yy/i Hanger Bar. ^DistribuHn^5Pin. Z- Casf-St^elBeanncf. 00 000000 Section B-B … o o o 31 Girder: Trestle Column. Secton A-Ai B Suspended Beotnng for Expansion End.Fort Point Highway Bridge. milled upper ends of vertical bearing angles riveted to thecolumn, and distributing the loads through a sufficient rivet-bearing area. The pin engages two 6x i|-in. eyebars 4 ft. long on…
Bridges
