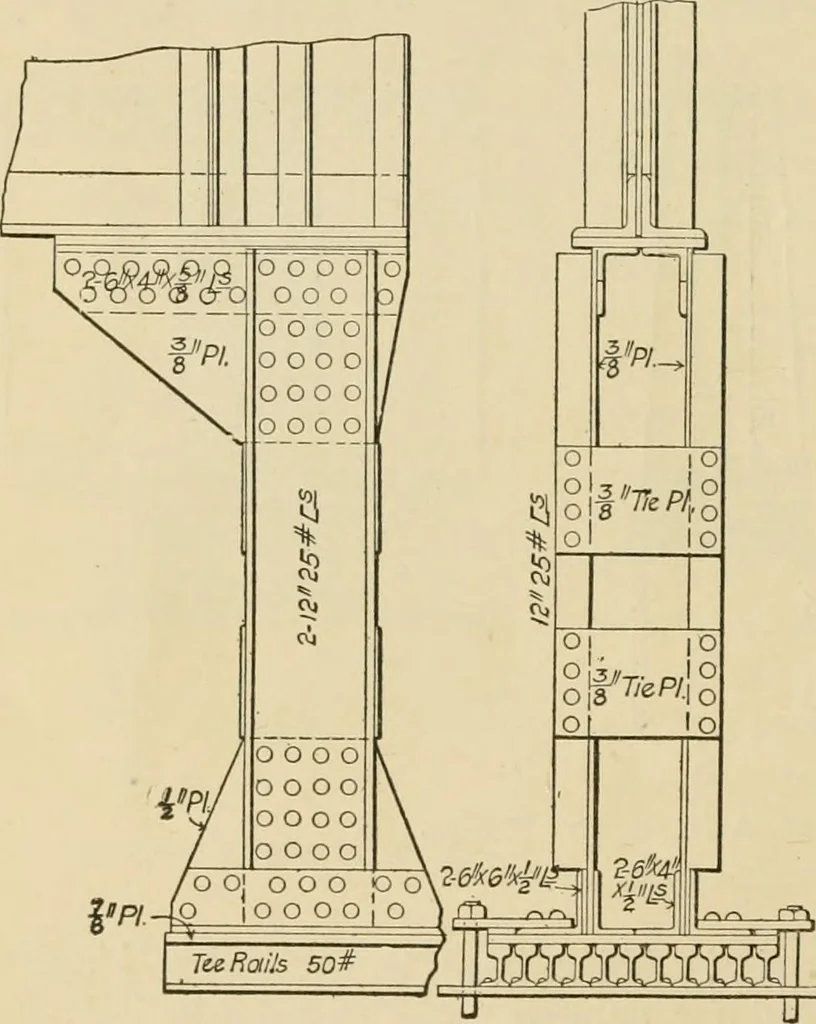

ersare riveted to pairsof eccentric knee-brace plates at thetops of the posts,andthe bottoms of theposts have symmet-rical extended pairsof web plates forming pedestals seated on bed plates madeof rails with top and bottom plates long enough to reachacross the pier tops and receive the adjacent… … Support for Fixed End of I 20-F-t. Girder. Wabash Highway Bridge. MISCELLANEOUS BEARINGS 215 APL iPi.\ The lower ends of the rocker posts engage pedestals corres-ponding to the top shoes, and like those used for small trus-ses. These pedestals are seatedon 792-lb. nests of 8-in. segmentalrollers…
