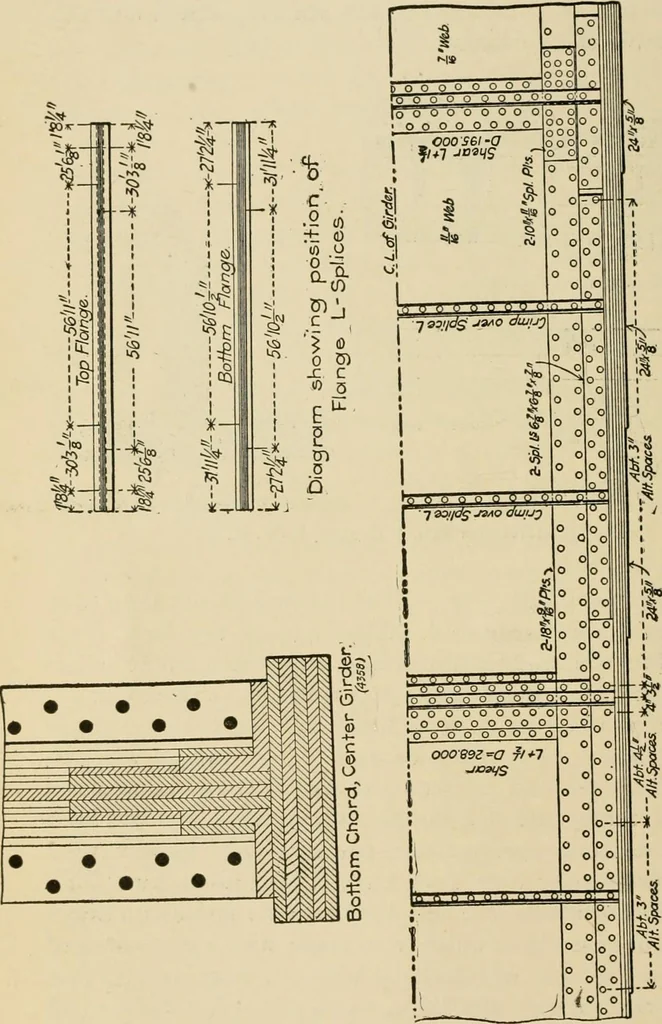

de plates, and five 24-in. cover plates, witha combined thickness of 3|- in. The flange angles were eachmade in three pieces with planed butt joints staggered about 4^ft. apart at web stiffener points on opposite sides of the web, thecenter of each pair being about 29 ft. from the center of the 224… … I Bridge No. 454, N. Y. C. & H. R. R. R. planed down from 8 X 8-iP. angles and romided so as to exactlyfit inside the 8 x 8-in. angles and have their edges flush. Therivets through them had a grip of 51\ in-, which was j% m. less WEB AND FLANGE SPLICES 225 than if they had engaged the center…
