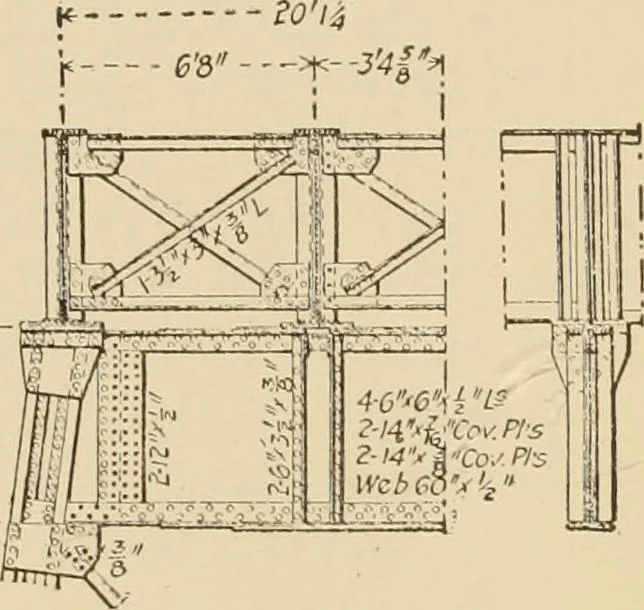

jacent girders in the sameline. The pair of longitudinalgirders on each side of thecenter line of the viaduct areconnected by vertical trans-verse sway-brace frames about 7 ft. apart, and by top and bottomzigzag angles between them in the planes of the top and bottomflanges. The pairs of stringers… … Half Tranverse Section at Topof Viaduct. White Water River Viaduct, 688 ft. x 30 ft. Four short-span steel plate-girder bridges and viaducts haverecently been built within the city limits of Richmond, Ind., forthe single-track line of the Cincinnati, Richmond & MuncieRailroad. The…
