Skinner, Frank W. (Frank Woodward), 1858-1932 · New York, McGraw · leaf 257

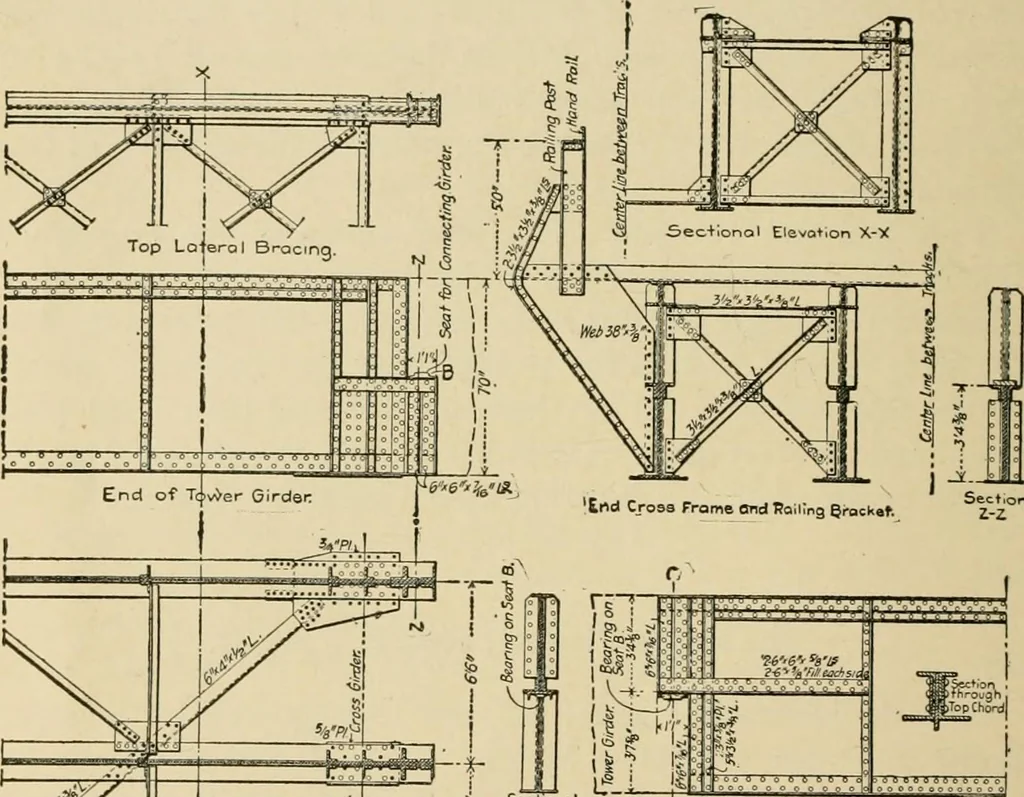

CTION transverse braces, the jaw plates are riveted across the columnflanges ; for the longitudinal braces they are bent Z-shape andriveted to the I-beam webs and flanges, and are reinforced by-angles on the column flanges. The columns have base platesseated on cast iron pedestals securely bolted… … Elevc.Ho,.^^- , End of Connecting Girder. Bottom La+«ro| Brocmg. Girders and Bracing. interposed between the base and pedestal. Pairs of 4-ft. plategirders are seated on kneebrace brackets, and have their websfield-riveted across the tops of the column flanges. Four lines of 7-ft. longitudinal…
Bridges
