Skinner, Frank W. (Frank Woodward), 1858-1932 · New York, McGraw · leaf 307

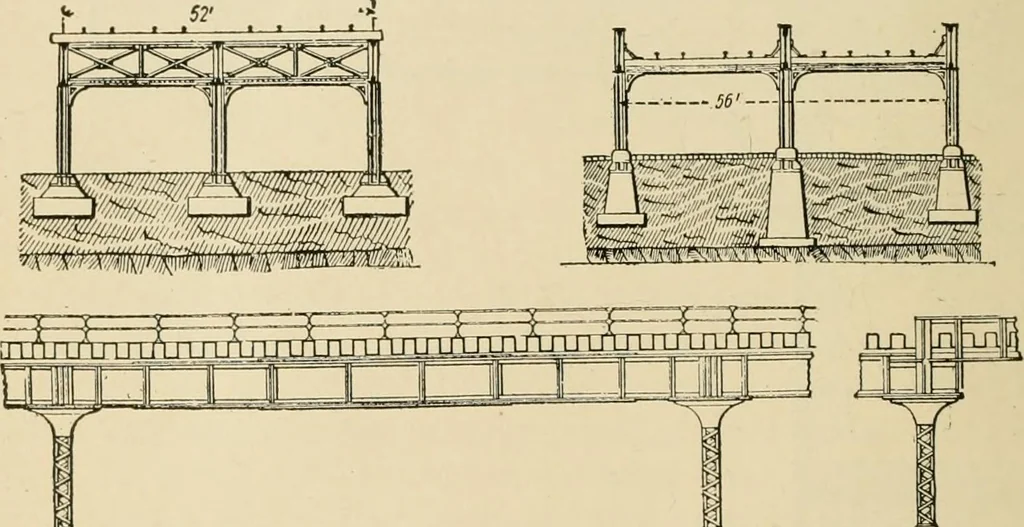

about 500 trains daily. Theregular structure has unbraced latticed channel columns about16 ft. high, averaging 65 ft. apart, in three longitudinal rows 28ft. apart. Three lines of longitudinal girders are seated on thecolumn caps and braced longitudinally with solid-web knee-braces. They are… … mS^-- v.^- n-jaM^^.j^^v^-^-^--^--- ^>^^^<^a«g-^a^;j^-^.^^Vx,j>-,>;j>^Wfei.;;iQ^ wfe<^-«W«ssis Transverse Elevations of Deck and Through Spans andGeneral Longitudinal Elevations. girders have 84-in. webs, | and -^^ in. thick, and 6 X 8 X |-in.flange angles reinforced by lo-in. and…
