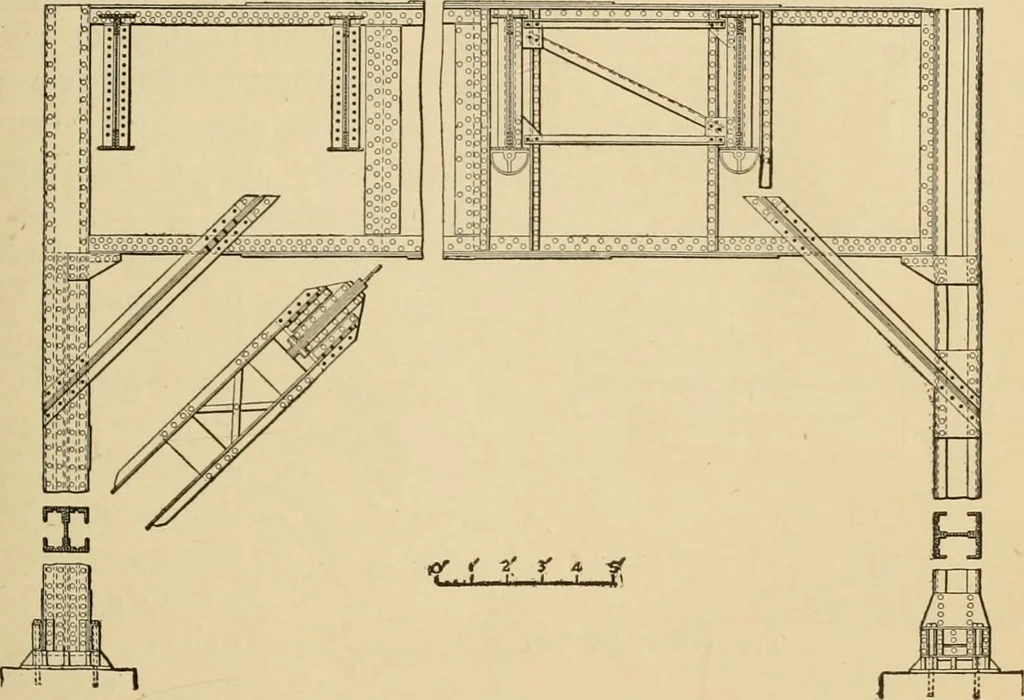

aced to the columns. The kneebraces have jaws which TRACK ELEVATIONS 299 at the lower ends embrace the cokimn flanges, and at the upperends engage flanged seats on the girder webs. The webs of the longitudmal girders are made in two pieces,sphced with a pair of 7 x f-in. cover plates with two… … Kneebraced Bent. to the webs of the transverse girders and are field-bolted toboth members. In the transverse girders the 4-in. legs of theflange angles are riveted to the webs with two rows of staggeredrivets, and very rigid connections are made for the kneebracesby inclined diaphragms riveted to…
