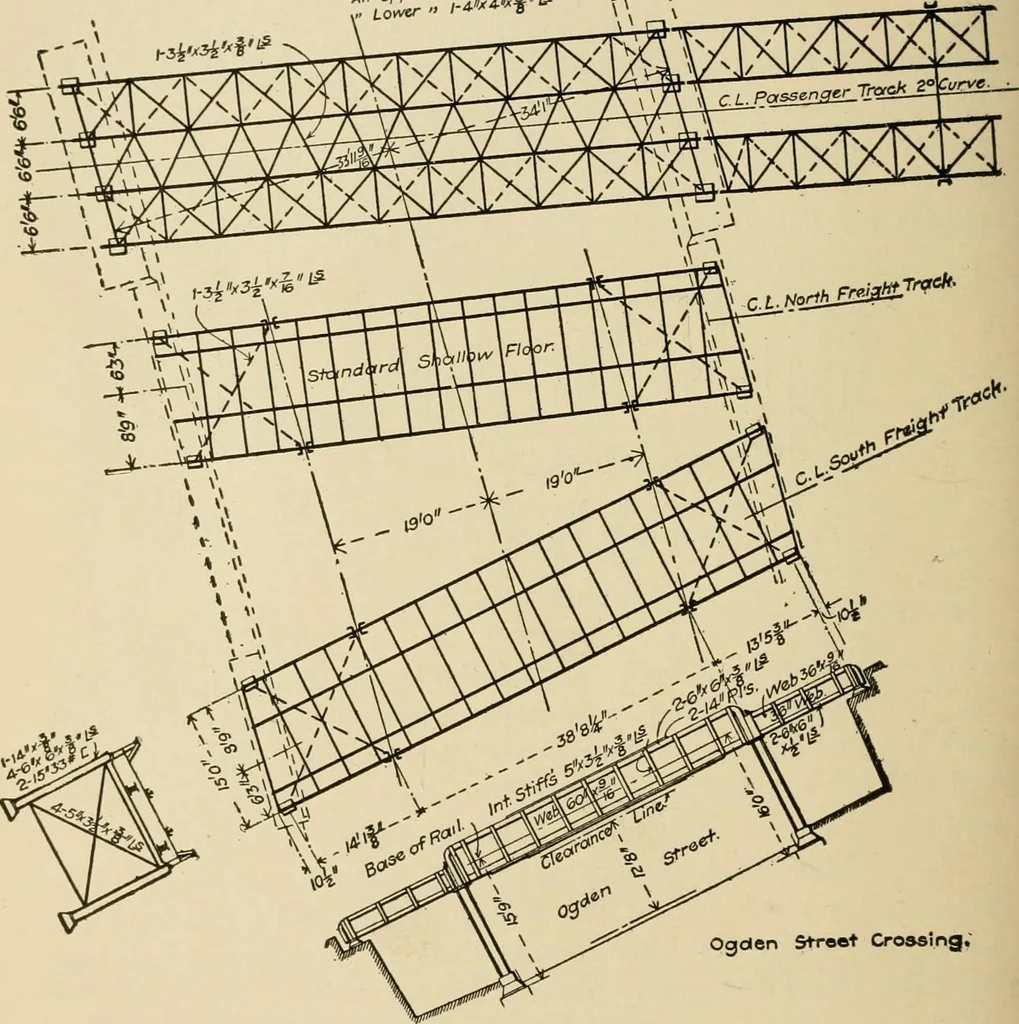

walls ; but at the principal streets, and near the PassaicRiver, the tracks are carried on plate girder spans supported on 310 BRIDGE CONSTRUCTION Steel columns, transverse bents and masonry abutments. Thesestructures have an aggregate length of about 871 Im. ft and aweio-ht of 3,320,000 lbs., and… … Crossing. Street Passenger and Freight Spans. double passenger track structure on a 2-degree curve with seventransverse bents from 25 to 30 ft. apart on the center line, andfour lines of plate girders 38 in. deep, web-connected to columnsand to transverse girders 45 in- deep. The transverse…
