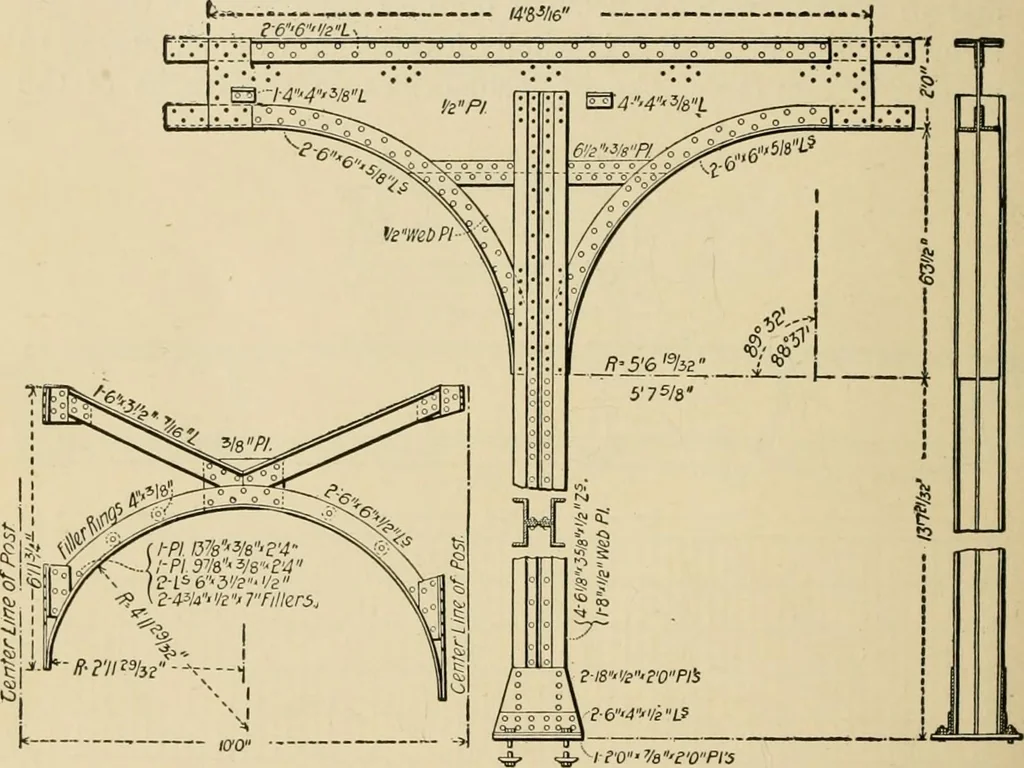

a double 341 Ui BRIDGE CONSTRUCTION bracket or balanced cantilever with horizontal top flange anglesand curved bottom flange angles. The ends of these cantileversare field-spliced to horizontal girders 24 in. deep and 27^ ft. longwhich connect adjacent columns and make a continuous struc-ture from… … End Sections of Girders Integral with Columns. at both abutments. At the abutments the ends of the girdersoverhang their pedestals and are anchored to the masonry bypairs of adjustable pin-connected bars with a short lever armwhich engage long bars built solid into the masonry and havingnuts on the…
