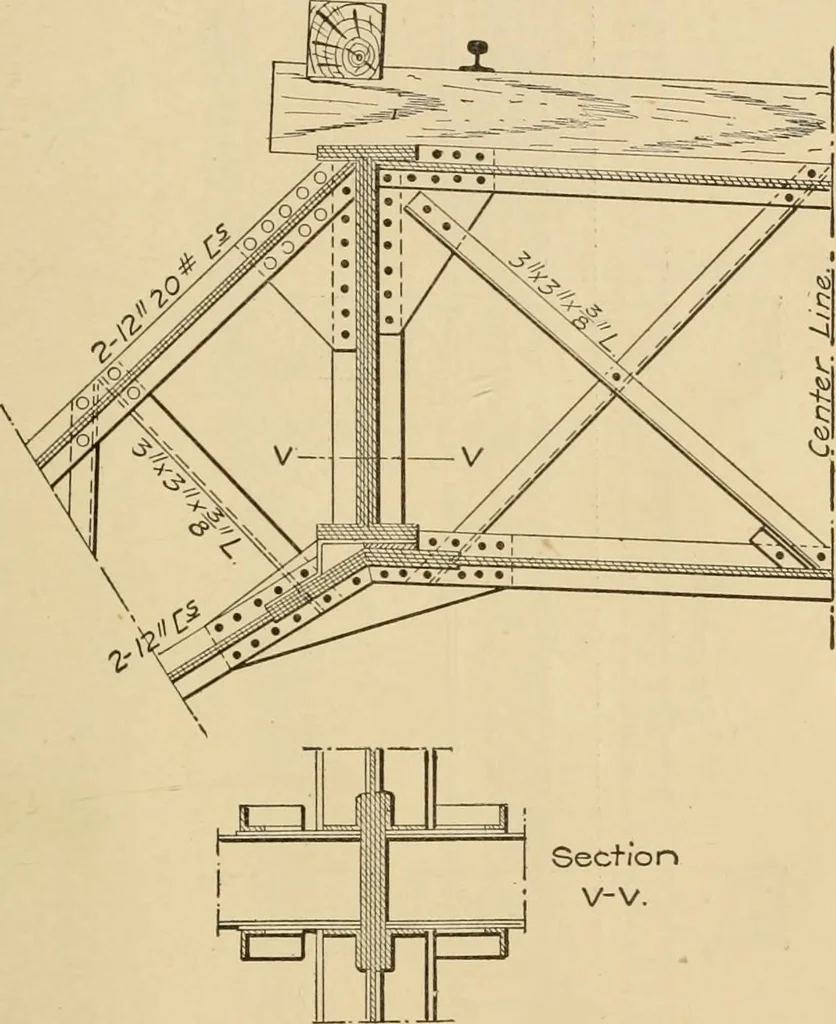

h are suspended over the river, EXAMPLES OF PLATE GIRDER CONSTRUCTION 363 nearly parallel to its direction. At one end of the structurethe ties are carried at one end on the suspended girder, and atthe other end on an 88-ft. plate girder supported by abutmentsin the ordinary way. The suspended… … Section v-v. De+all of Arch Ben+ and Girder connecfion.Spans Supported on Arch Bents. versely by horizontal struts connected to kneebrace gussetplates, belted to the wall stringer, and anchored to the rock.Both of these bridges are described in Vol. XXV of theTransactions Mad River Bridge. — The…
