Skinner, Frank W. (Frank Woodward), 1858-1932 · New York, McGraw · leaf 56

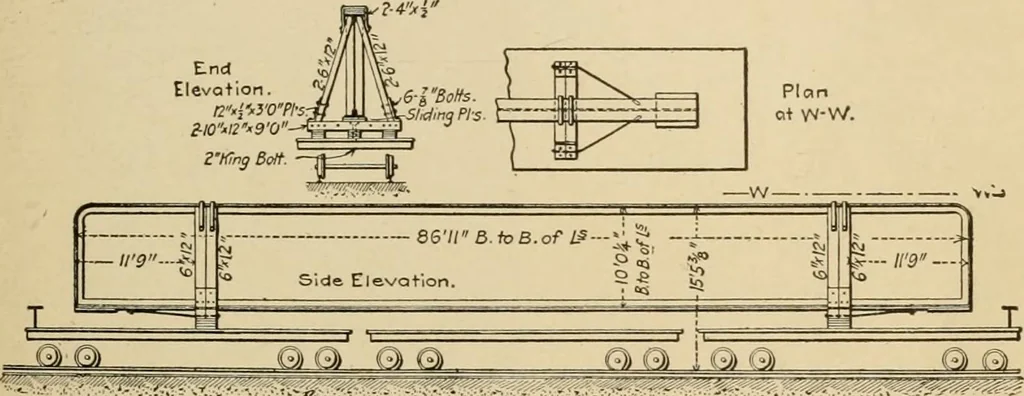

ly be erected without interrupting rail-road or highway traffic. SJiippiiig a yi-To7i Givder. —The center girder of a throughbridge carrying four tracks of the New York Central & HudsonRiver Railroad, at Oriskany, N. Y., is 87 ft. long, 11 ft. high,and 2 ft. wide, and weighs 142,000 lbs. It was… … Shipping a 71-ton Girder. gether and extending across the car floor to which they weresecured in the center by a vertical 2-in. kingbolt. The bolt headwas countersunk into the top of the sill and allowed the girder toswivel in passing around curves. The ends of the sills wereshod with iron plates,…
Bridges
Internet Archive · Boston Library Consortium · Public Domain Mark 1.0. Free to use for anything.
