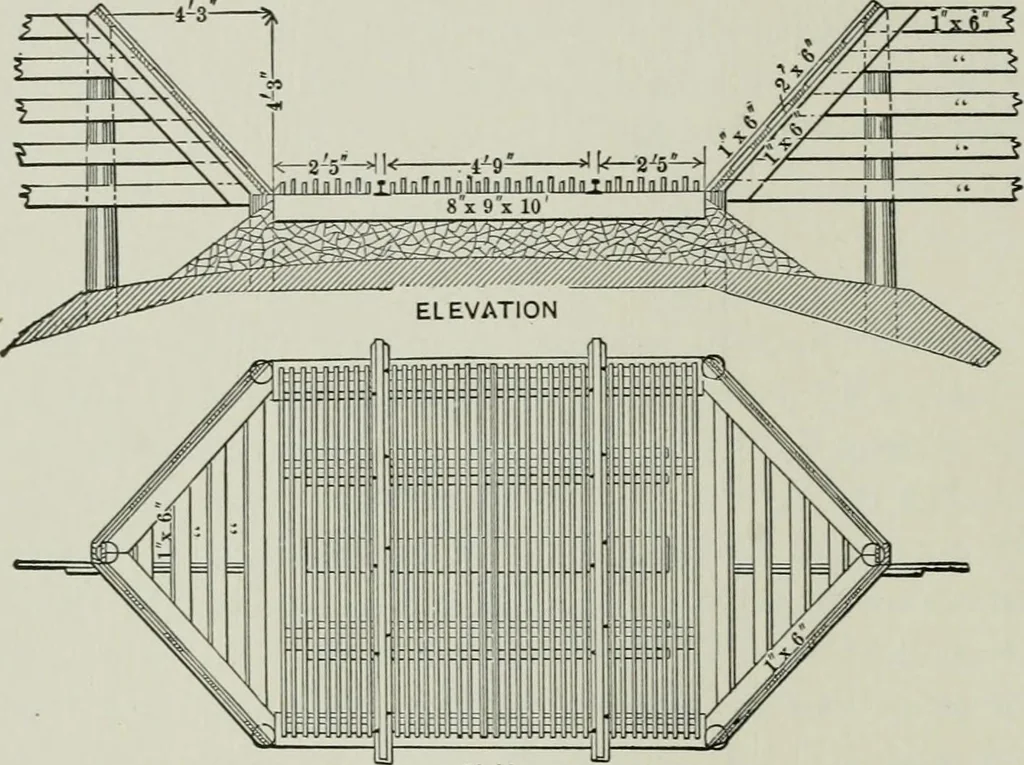

of the road. Road crossings atgrade will be eventually abolished. 78 CULVERTS, BRIDGES, AND MINOR STRUCTURES Cattle Guards. — A cattle guard is a structure intended toprevent cattle passing from a highway crossing to the right of wayof the railroad. It should be so designed as to make the passageso… … PLANFig. 30. Surface Cattle Guard form of which is shown in the figure. The type is called surfaceguard to distinguish it from the older common type of pit guard,which was a pit about 2 feet deep crossed by the rails on stringers,and otherwise open on top or partly covered by triangular slats.…
