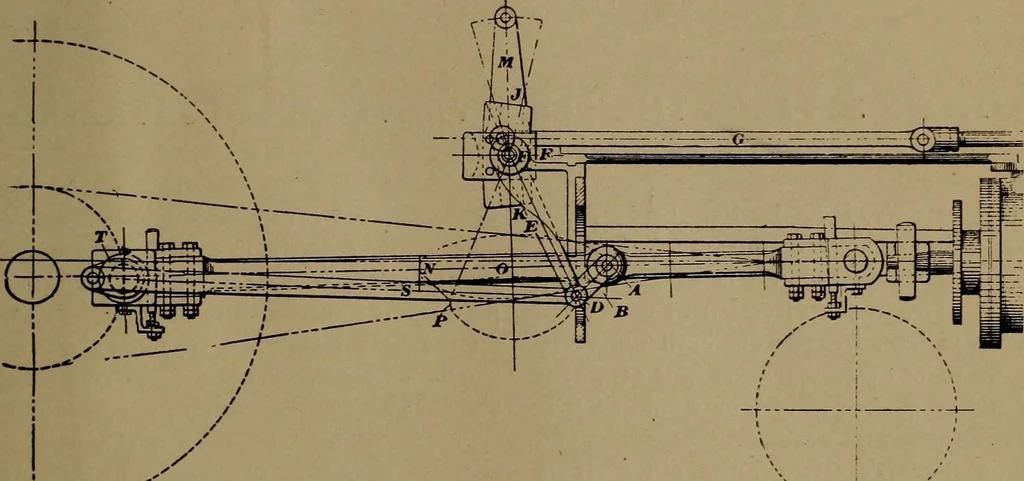

ing, and this is the cause ofthe very limited use to which the gearinghas been put on American railroads. Asroadbeds improve, the gearing may comeinto more popular favor. It unquestion-ably takes its place among the leadingdevices used in steam distribution. Likethe Corliss valve gearing and others… … ~t~ FIG. 4. JOYS GEAR MODIFIED SO AS TO RAISE PARTS FROM TRACK. 55 THE VALVE-SETTERS GUIDE NOTE ON SETTING THE SLIDE VALVE OF A STATIONARY ENGINE The valve rod connections being prop-erly adjusted, place the crank on thedead center and move the eccentric aroundon the axle, in the direction in which…
