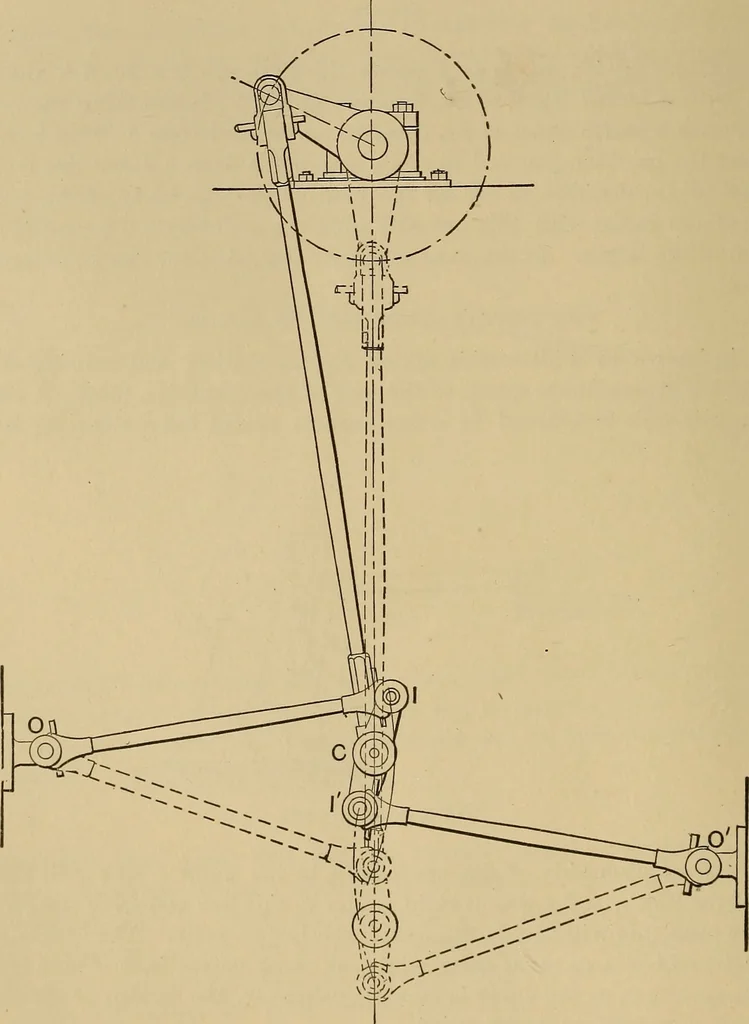

Fig. 416, … Fig. 417. MECHANICS. 215 watts parallel motion. Watts parallel motion is shown in Fig. 416, theobject of this motion being to obtain a rectilinear mo-tion of the piston-rod and air-pump rod under thevarying angularity of the beam. In the figure the line C D indicates the centre ofthe beam; from the…
