Valve setting: simple methods of setting the plain slide valve. Meyer cut-off. Corliss. and poppet types (1908)
Collins, Hubert Edwin, 1872- · New York [etc.] Hill publishing company · leaf 108

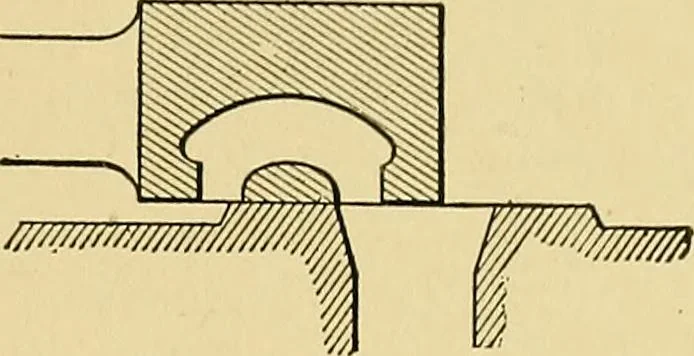

s or cylinders, rigidlyconnected, and working over ports p, on theinside of the main valve. Both main andcut-off valves are made tight by spring rings.The valve gear is identical with that pre-viously described. To secure quick admission and releasewith a small valve travel, multiported valves are… … FIG. 102. Setting the Valves The operation of setting the valves is quite simple. First see thatpin a at the upper end of rocker R vibrates an equal distance each sideof its central position. This may be done by plumbing up from pivotA, Fig, 103, and measuring the distances a B and a G, which…
Steam-engines
