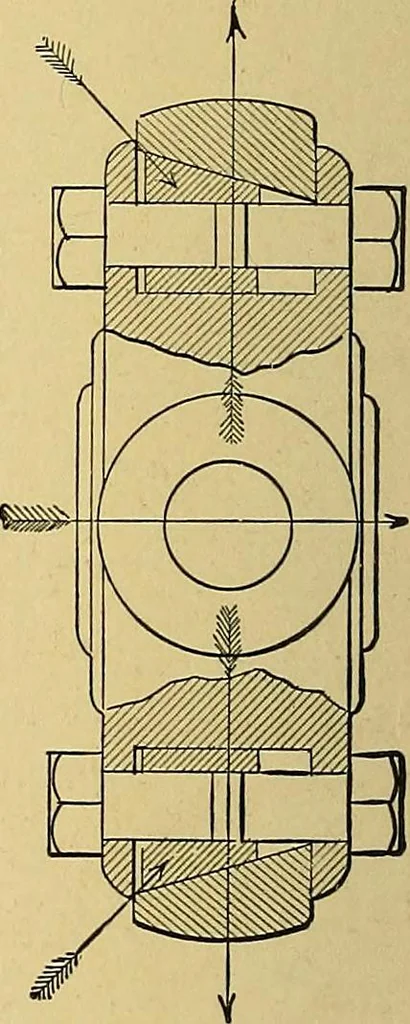

tight, thentake up the slack, on the bolt A just enough to knowyou have it set up, then screw B down into place, set-ting it up tight. The arrow marked on the outside end of everybox connection denotes the direction the wedge shouldbe moved to take up lost motion. To slacken, reversethe above… … XII THE FLEMING PISTON-VALVE ENGINES* To set the valves of a Fleming piston-valve engine, it is necessary inthe first place to get reference marks on the fly wheel corresponding to thedead-center positions of the piston. The method of obtaining these hasbeen so frequently described that it seems…
