Blueprint reading; a practical manual of instruction in blueprint reading through the analysis of typical plates with reference to mechanical drawing conventions and methods, the laws of projection, etc (1919)

Fairfield, Howard Parker, 1858-, Kenison, Ervin, Waite, Edward B. (Edward Broughton), 1873-, American Technical Society · Chicago, American technical society · leaf 231

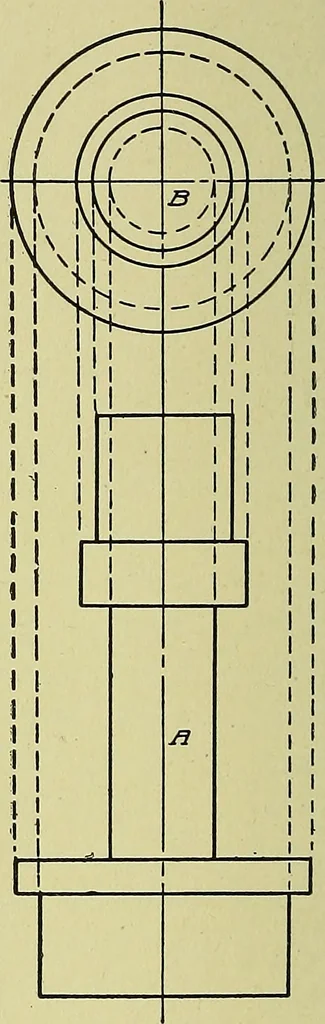

An illustration from Blueprint reading; a practical manual of instruction in blueprint reading through the analysis of typical plates with reference to mechanical drawing conventions and methods, the laws of projection, etc, 1919, leaf 231 — Fig. 113. Projections of Circular Ring Fig. 114. Projections of Turned Block (2) A line oblique to either plane has its projections on that plane shorterthan the line itself, and its other projection obhque to the ground line. (3) No projection can be longer than the line itself. (4) If two lines…

Mechanical drawing · Blueprinting

Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
