Valve setting: simple methods of setting the plain slide valve. Meyer cut-off. Corliss. and poppet types (1908)
Collins, Hubert Edwin, 1872- · New York [etc.] Hill publishing company · leaf 133

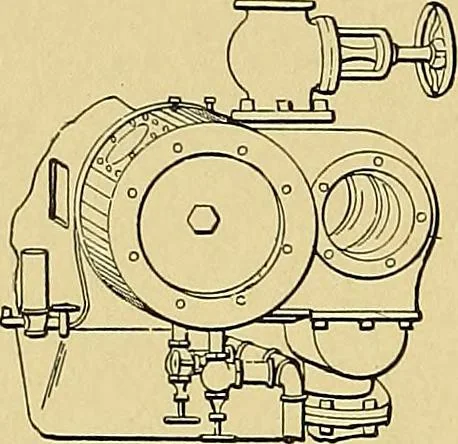

r of dividers. Turn * Contributed to Power, by Thomas Hall.121 122 VALVE SETTING the engine over until the tram just reaches this central point on the fly-wheel rim, and yon will have the dead-center position of the crank forthat end of the stroke. Use the same method to find the other dead… … Face ofValve Chamber is shown by Fig. 125. Also make acorrect templet of the valve seat, inthe valve chamber, making one endof the templet even with the face ofthe valve chamber. Fig. 136. Markthe ports, head end and crank end,showing both edges of both portsand the face of the valve chamber,…
Steam-engines
