Valve setting: simple methods of setting the plain slide valve. Meyer cut-off. Corliss. and poppet types (1908)

Collins, Hubert Edwin, 1872- · New York [etc.] Hill publishing company · leaf 167

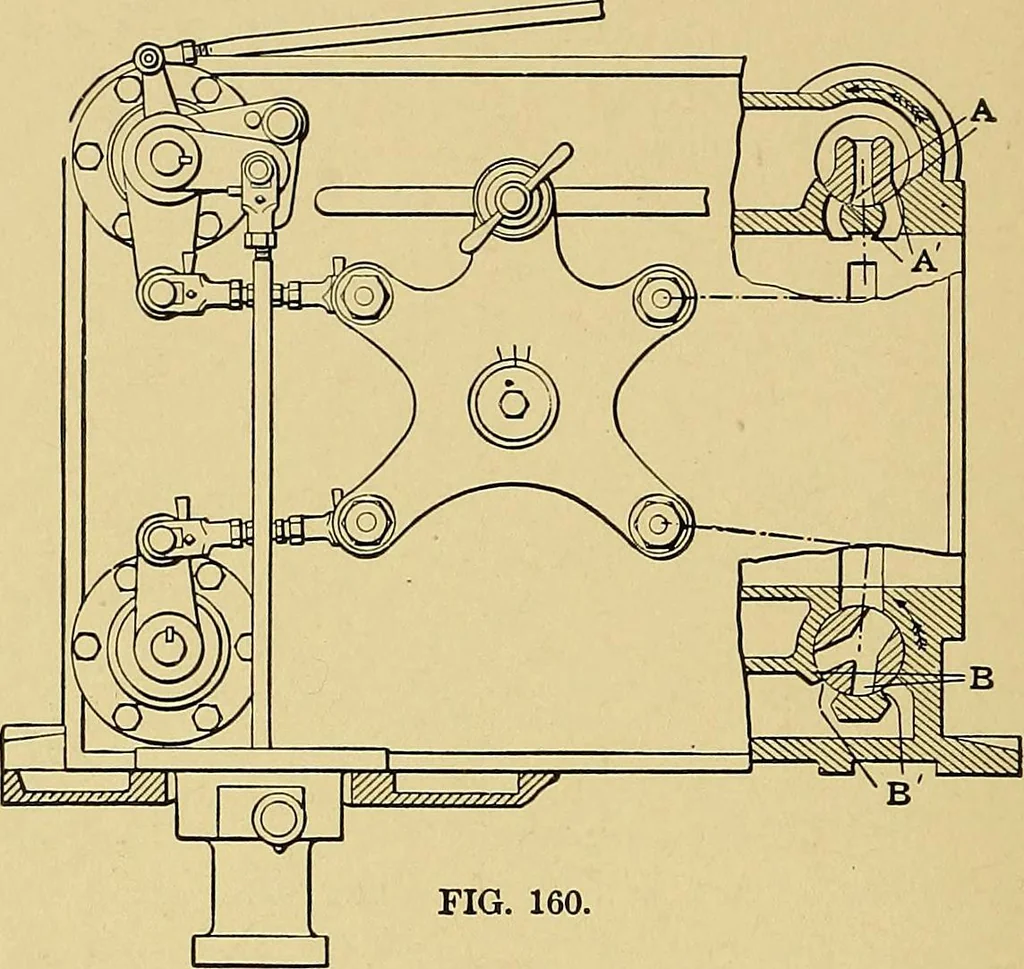

An illustration from Valve setting: simple methods of setting the plain slide valve. Meyer cut-off. Corliss. and poppet types, 1908, leaf 167 — FIG. 159. 156 VALVE SETTING Heavy Duty and Eeliance Types Figs. 160 and 161 are views of the C3dinders on these types of enginewhich are built by the same company. In design these engines differ from … those illustrated in Figs. 155 and 156 in having less heavy wrist plates tosuit higher engine speeds, and in being equipped with double-ported steamand exhaust valves.

Steam-engines
