Tappet and dobby looms : their mechanism and management (1912)
Roberts, Thomas · Manchester [Greater Manchester] : Emmott & Co., Ltd. · leaf 204

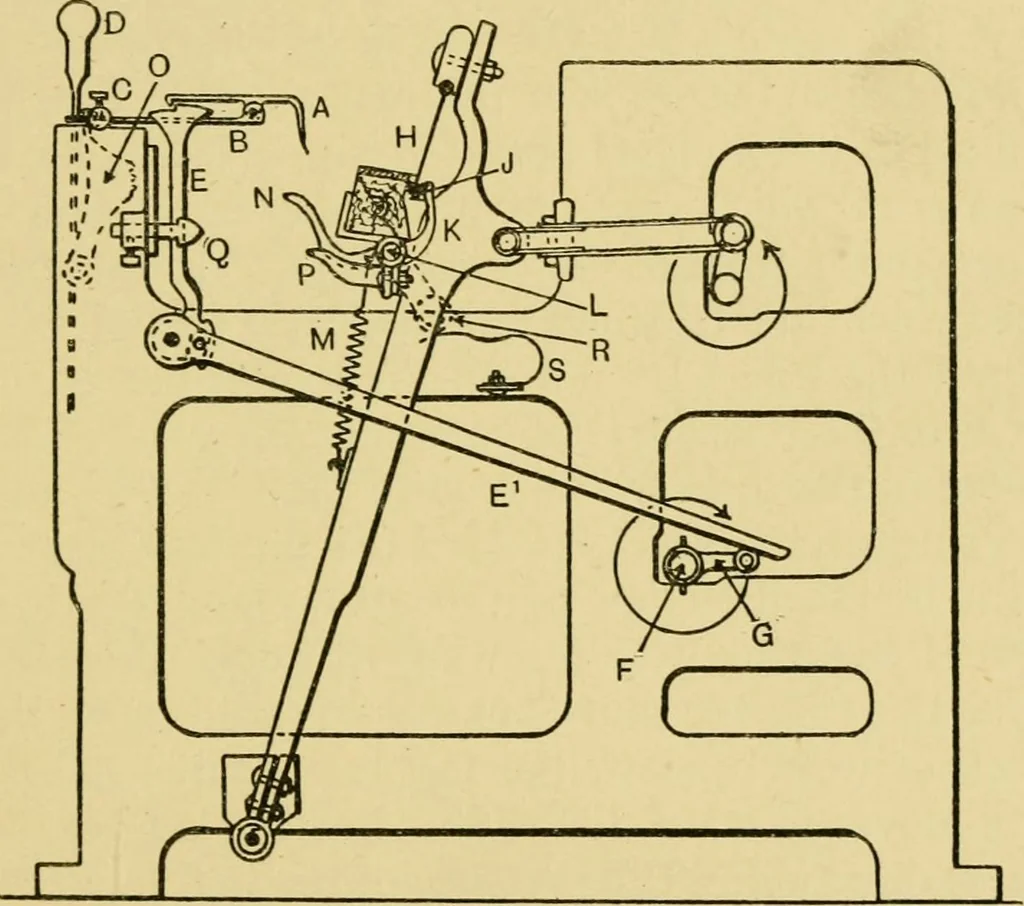

ul ad-justment; if left too slack it would fail to tilt the fork.The fork should be set to allow the prongs to enter the SIDE WEFT-FORK STOP-MOTION 193 grid quite freely, and not touch the sides of the bars orthe bottom of the groove cut in the race. The result ofthis would be for the fork to be… … Fig. 57. of its being placed at one side of the loom. On this ac-count it is possible for the weft to break and catch onagain during the return pick, which without giving anyindication to the weft fork would allow partly broken picksto be made in the piece. By reason of the above defectthis type of…
Looms
Internet Archive · UMass Dartmouth, Claire T. Carney Library · Public Domain Mark 1.0. Free to use for anything.
