Valve setting: simple methods of setting the plain slide valve. Meyer cut-off. Corliss. and poppet types (1908)
Collins, Hubert Edwin, 1872- · New York [etc.] Hill publishing company · leaf 42

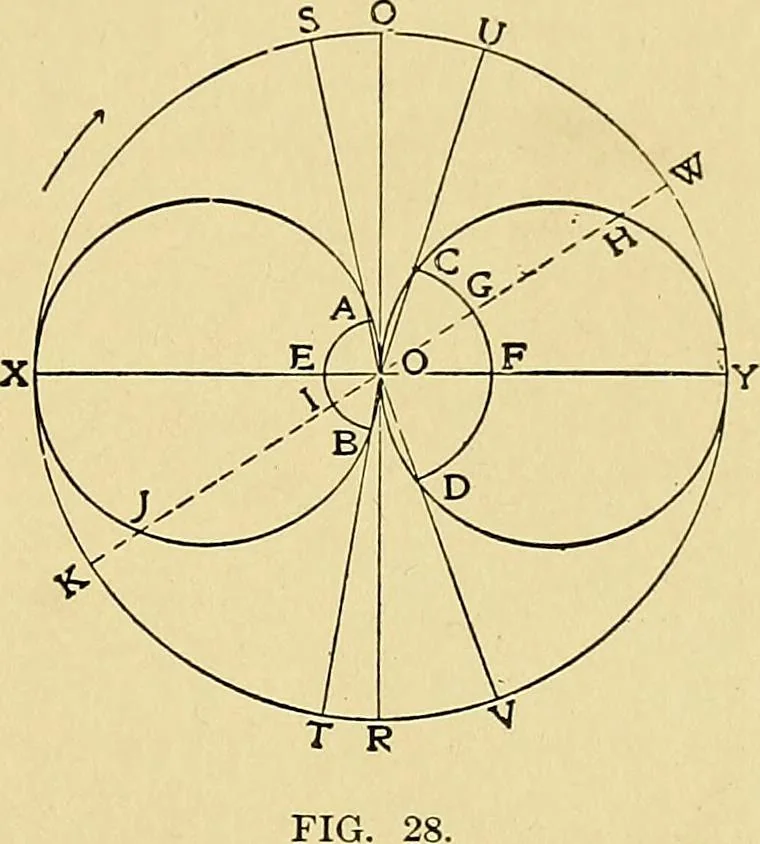

that at the right of the figure representing the opening of the valve forthe admission of steam at the left while, at the same time, the circle atthe left of the figure represents the opening of the valve at the righthand for the escape of the exhaust steam. On the reverse stroke of thepiston, what…
Steam-engines
