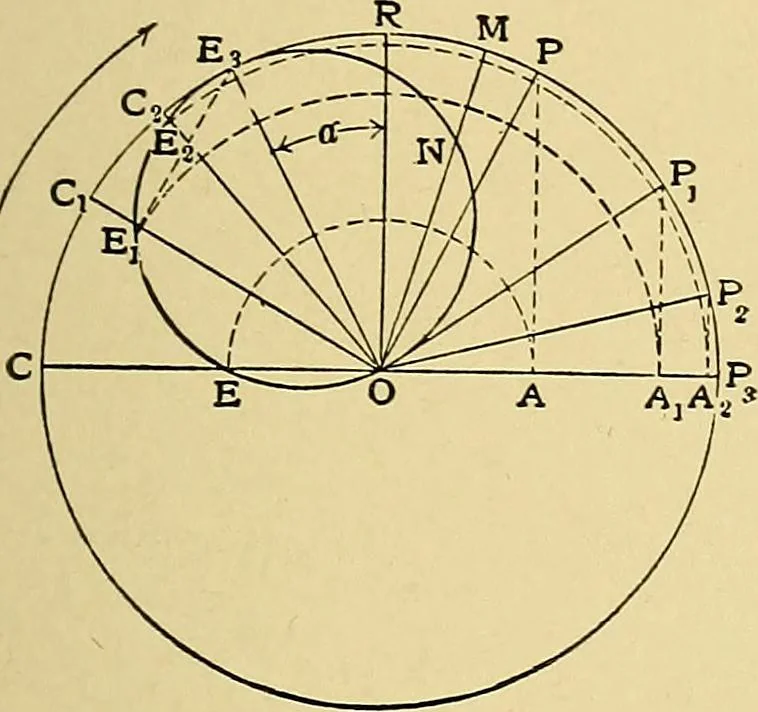

k is on the dead center, as at C in Fig. 30, the valveis open by the amount of lead, which is represented in the diagram by thedistance N—Q on the line of dead centers. In a similar way, the amountthat the valve is open to exhaust at the end of the stroke is knoA\Ti asthe exhaust lead. It is now…
