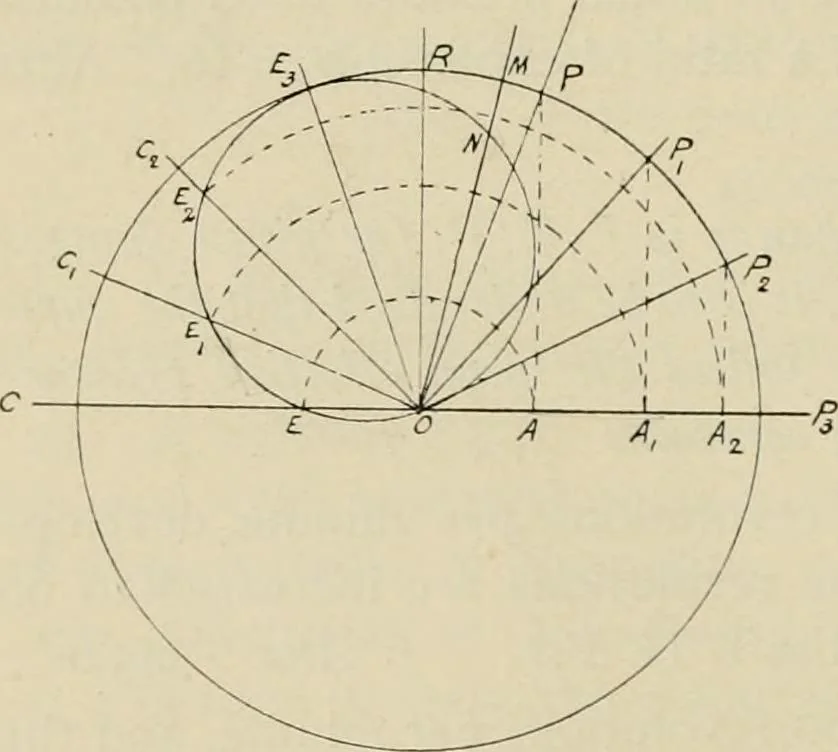

he crank moves to positions C^, C^, E^, the eccentric movesthrough equal angles to corresponding positions P^, P^, Pz- Asdrawn the figure shows P^ the position of the eccentric whenthe valve has reached its full travel to the right. It is evidentthat the crank at the same time reaches a position… … Fiff. 19. PROBLEMS, NOTES AND SKETCHES. 47 Now sweep these positions around to E, E-^, E^, and £3, to theHnes joining the centre with the corresponding positions of thecrank. Join £3 with any one of the other points, say with £^.Then, in the triangles P-^^OA^ and E^OE^, we have the hnes P^Oand OA-^…
