Valve setting: simple methods of setting the plain slide valve. Meyer cut-off. Corliss. and poppet types (1908)
Collins, Hubert Edwin, 1872- · New York [etc.] Hill publishing company · leaf 59

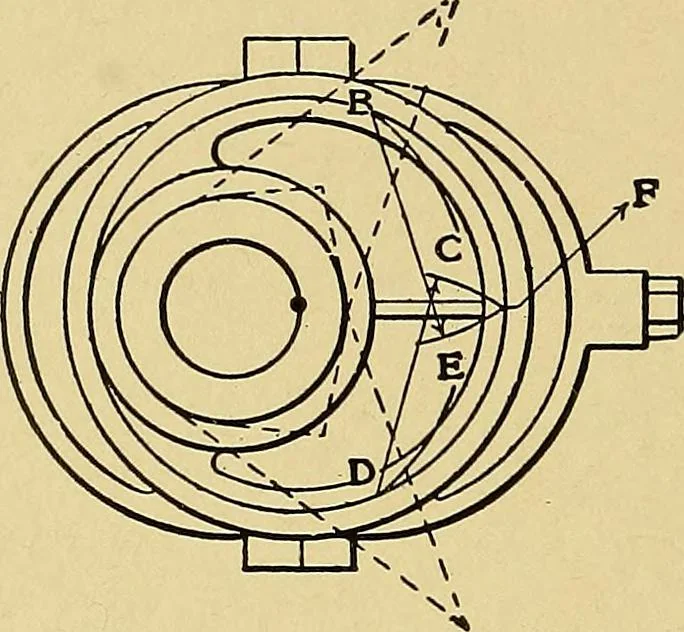

FIG. 51. around so that both points correspond and the eccentric will then be onone dead center. From the points J and L scribe the arcs 0 P andQ R, ending at the points 0 and Q on the edge of the strap. From thepoints 0 and Q scribe arcs intersecting at the point 8 on the edge of thestrap. With…
Steam-engines
