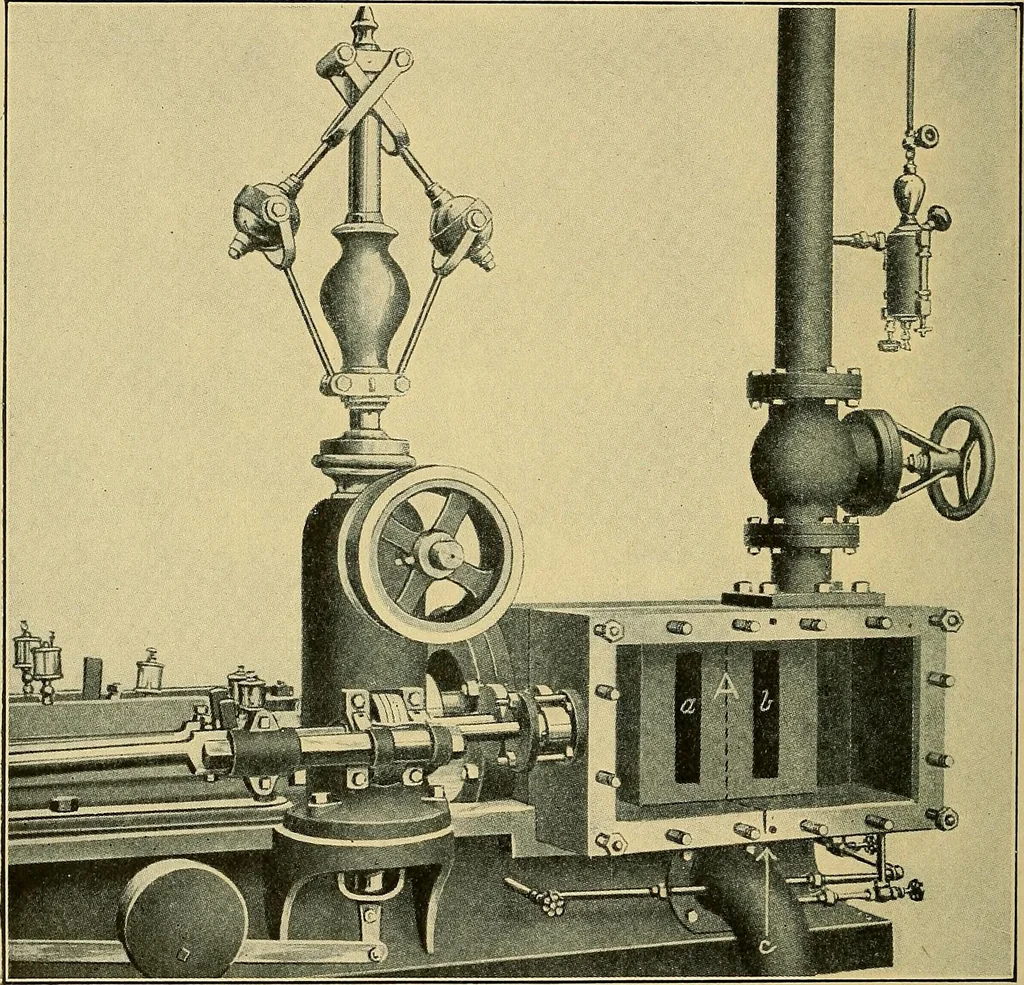

nd 52, and place the eccentric on the dead center nearest 50 VALVE SETTING the engine cylinder. With a seriber mark downward on the edge of thevalve farthest from the eccentric, which will result in the line m on thevalve seat (Fig. 53). Move the eccentric to a point opposite the centerand scribe… … FIG. 54. the eccentric around until the same edge of the valve comes to the line I.The center line A on the valve should now correspond with the line con the steam-chest flange, as shown in Fig. 54. With the valve in midposition, reach through its ports a and &, Fig.54, with a seriber and mark…
