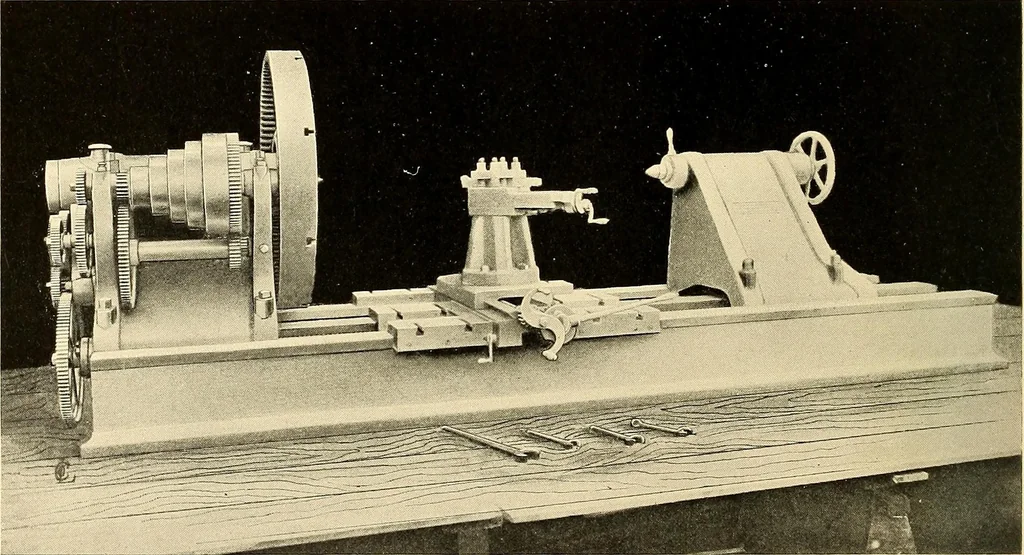

feed required betweenlimits. Largest lift of cone-pulley, 32, and width of belt, 5. Complete withcountershaft, wrenches, full set of change gears, water-can, and steady-rest. Fastand loose pulleys on countershaft, 26 diameter for 6 open and cross-belts, andshould make 90 and 180 revolutions per… … 60 LATHE.—Screw-Cutting and Turning, with Screw-Feed. Flat-top shear, with three bearings. Head set over to bring thrust of cutwithin bed at all times. Heavy cast-iron spindle; the cone-pulley and back-shaftdrive through face-plate only. 15 changes of speed. Will swing over bed, 60;will swing over…
