Valve setting: simple methods of setting the plain slide valve. Meyer cut-off. Corliss. and poppet types (1908)
Collins, Hubert Edwin, 1872- · New York [etc.] Hill publishing company · leaf 76

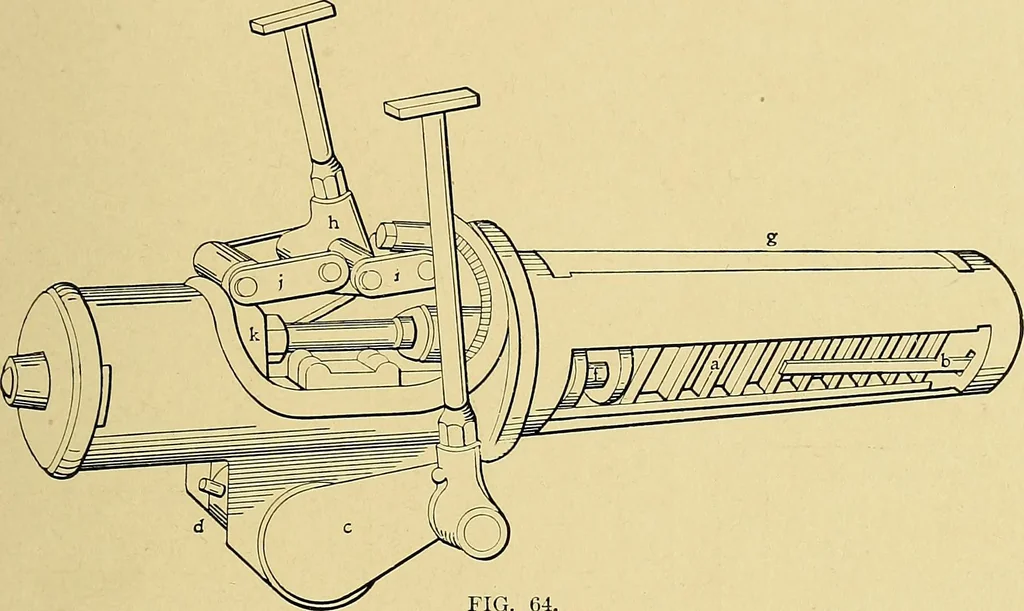

Fig. 6-J: is a view of the valve plug with all the parts assembled. Thisview shows the inlet- or steam-valve side of the plug. The inlet valve isat a; the spring which holds it to its seat when not under steam pressureis at h; and c is the pusher crank which actuates the valve by meansof a cam at… … FIG. 64 of the head e and turning the rod, an adjustment of the valve setting canbe made, as will be shown later. The inlet valve is opened by the pusher cam pushing it forward, butis released from this cam through the means of a trip cam on the bottomof the valve-plug head, which is connected to…
Steam-engines
