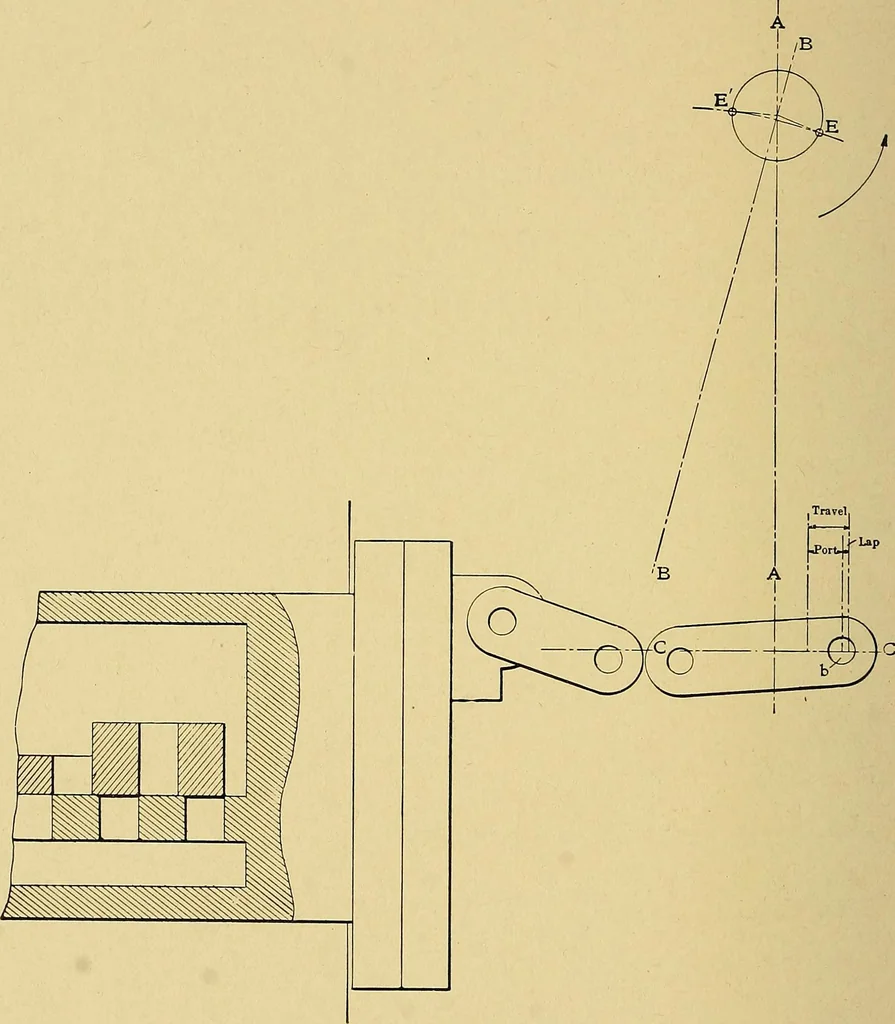

70 VALVE SETTING toggle stub end has come up toward the line C C; the point h has reacheda position corresponding to the near edge of the ports and the valve hasjust cut off or closed for compression. In Fig. 70 the eccentric has reached the point E on its travel, and thetoggle links now forming a… … FIG. 69. the other, the valve is lapped as shown with the point h where it is. Thisis the extreme of travel for the valve and stem in this direction. In Fig. 71 the eccentric has reached the point E, the top center of itstravel, and the toggle stub end the same, but the point b has come back onits…
