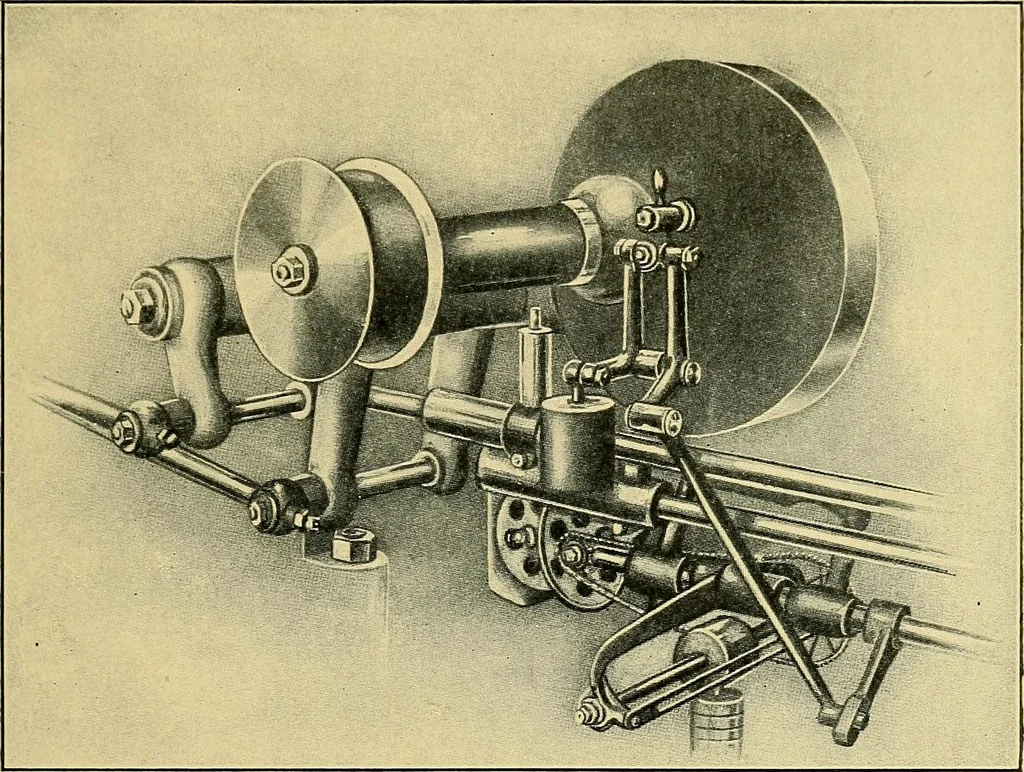

etrip shaft is shown in Fig. 80, in which is also shown the connectionto the dashjDot, and a stop, with the handle in a vertical position, forchecking the ont\\ard motion of the stem. From the description of theaction of the steam-valve gear, it is evident that a rotation of the tripshaft causes… … FIG. 80. position operates a safety stop which does not allow the latch to engagethe lifting block and causes the steam valve to remain seated and so shutofE steam completely. Its mode of operation will be apparent from whatfollows. It is seen that this gear has the quick opening and release…
