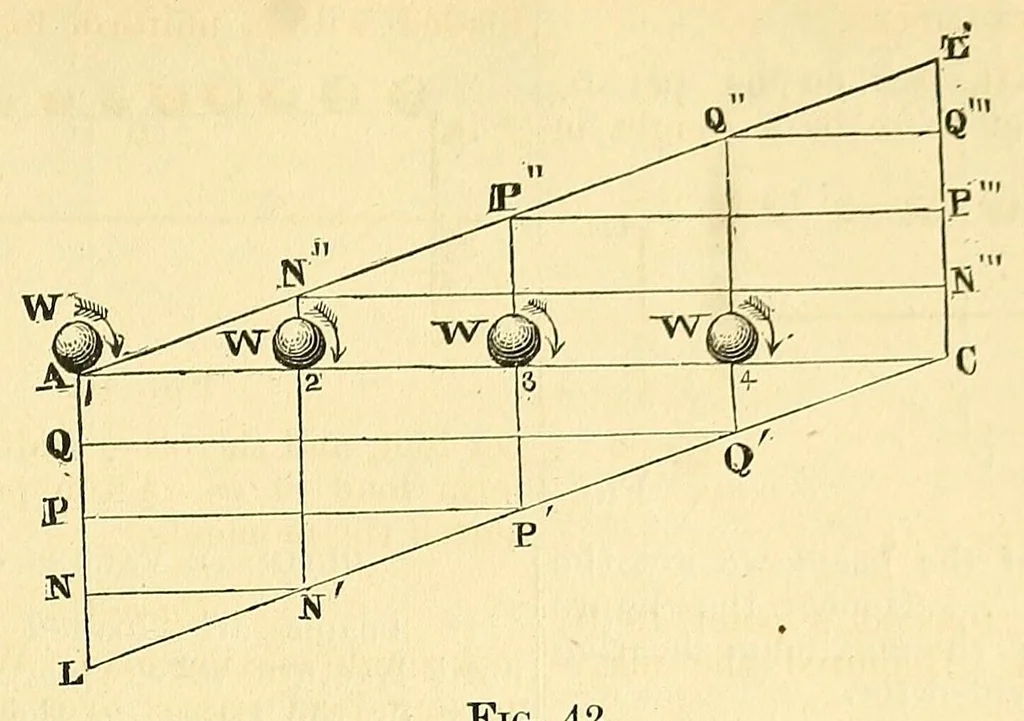

197 STRENGTH OF BEAMS UNDER TRANSVERSE LOADS. … Fig. 42. given by the figure ALPL'C. In this Turn the triangle AL'C down for con- W venience, as in (Fig. 43), and then the figure A L=C L'= W and D P= — . shearing stress to be provided for is 6 2 Fig. 43. Case VI. (Fig. 44), moving on from one end as a A distributed moving load. When a long train…
