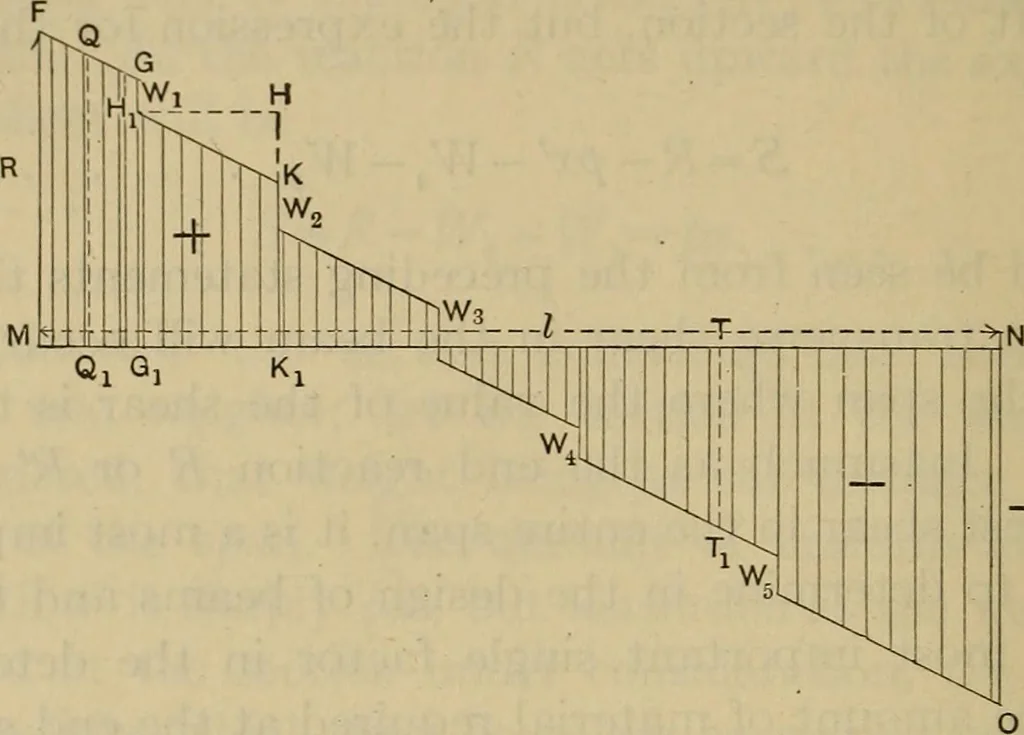

graphical representation of the pre-ceding treatment of intermediate and end shears, MNbeing the length of span shown in Fig. i. MF is thereaction R laid off at a convenient scale. The weights orloads Wj, W^, W^, etc., are laid off vertically downward intheir proper locations at the same scale, as… … Fig. 2. Fig. I immediately to the left of W^, and Hfi^ is the shearimmediately to the right of the same load. Similarly,H^^H being drawn horizontally, HK is the amoimt of uniformiloading pa between W^ and W^. The remainder of thediagram is drawn in the same manner. Any vertical ordinate drawn from…
